HI7632-00

EC/TDS Probe for Mini Controller

$74.99

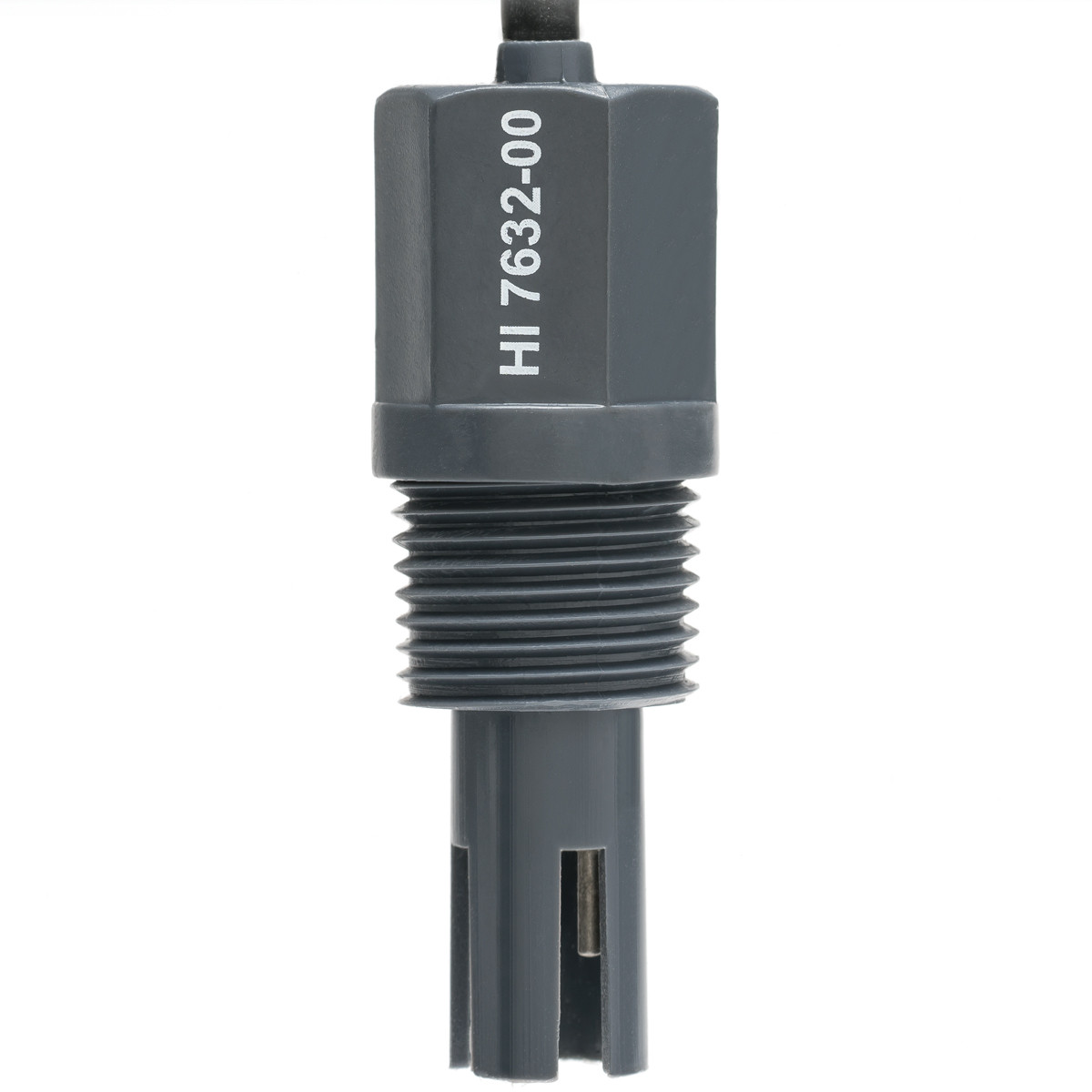

The HI7632-00 is a two-pole amperometric EC/TDS probe for panel mounted mini controllers that measure in the high range (mS/cm and ppt). This probe has a built-in temperature sensor for Automatic Temperature Compensation and a ½ " male NPT threaded connection for insertion mounting. The HI7632-00 probe provides a rapid response and high accuracy EC or TDS measurement.

Two-pole amperometric probe
Internal temperature sensor
High range measurement (mS/cm and ppt)

*Products classified as Dangerous Goods can only be shipped via ground.

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

Two-Pole Probe

The HI7632-00 is an amperometric sensor, utilizing two-pole technology to achieve accurate EC and TDS measurements. An alternating voltage is applied to the two electrodes and the generated current is measured. The HI7632-00 is compatible with the following mini controllers that measure in the high range:

EC:

TDS:

BL983318

Internal Temperature Sensor

The integrated temperature sensor of the HI7632-00 probe is crucial for accurate EC and TDS measurements. Changes in temperature of a solution will change the ion mobility, which will influence the measurement. For this reason it is important that a fast and stable temperature measurement be taken in order to provide an accurate temperature compensated EC and TDS reading.

Threaded Connection

The ½” NPT threaded connection of the HI7632-00 allows for insertion mounting into a common “T” fitting without the need for additional hardware.

Multiple Cable Lengths

The HI7632-00 is available with varying lengths of cable based on your specific requirements.

HI7632-00 comes with 2 meters (6.6 feet) of cable attached.

HI7632-00/6 comes with 6 meters (19.7 feet) of cable attached.

Keep extra testing supplies on-hand

BL983327 Conductivity Mini Controller w/ High-Range Relay (0.00-10.00 mS/cm) $229.99

BL983317 Conductivity Mini Controller w/ Low-Range Relay (0.00-10.00 mS/cm) $229.99

Resources

Specifications

Specification Name	Detail
SKU	HI7632-00
Range	0.00 to 10.00 mS/cm
Accuracy (@25˚C/77˚F)	±2% F.S.
Recommended Operating Temperature	automatic from, 5 to 50˚C (41 to 122˚F) with β=2%/˚C
Tip / Shape	2 electrode probe
Body Length	64 mm (2.5")
Cable	2 m (6.6') and 6 m (19.7') based on selection
Recommended Use	controllers, process equipment
Connection	½” threaded male NPT
