HI83308-01

Water Conditioning Photometer

$692.00

HI83308 is a compact, multiparameter photometer for use in water conditioning applications. The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 23 different programmed methods measuring 15 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. Water conditioning parameters include fluoride, chlorine, ammonia, manganese, copper, iron, silver and zinc. To save valuable laboratory benchtop space, the HI83308 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

Advanced optical system

Unparalleled performance from a benchtop photometer

Digital pH electrode input

Save valuable bench space with one meter that works both as a photometer and as a laboratory pH meter

Absorbance measuring mode

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

The HI83308 benchtop photometer measures 15 different key water quality parameters using 23 different methods. This photometer features an innovative optical system that uses LEDs, narrow band interference filters, focusing lens and both a silicon photodetector for absorbance measurement and a reference detector to maintain a consistent light source ensures accurate and repeatable photometric readings every time.

The HI83308 was developed to measure the most common parameters in water quality monitoring. One important parameter to test water quality is iron since it can affect color, odor, and turbidity and can also be the most troublesome factor for appliances and surfaces in contact with water. High levels of iron in water can result in clogged water pipes or heat exchangers. Additionally, ammonia detection in water treatment systems is particularly important for aquarium owners and fish farm operators since ammonia is highly soluble in water and extremely toxic to fish. One other important parameter in water quality monitoring is fluoride. Fluoride is best known for preventing tooth decay. While it does help prevent tooth decay, too little fluoride can be ineffective while too much can cause staining of teeth.

A digital pH electrode input allows the user to measure pH by a traditional glass electrode. The digital pH electrode has a built in microchip within the probe that stores all of the calibration information. Having the calibration information stored in the probe allows for hot swapping of pH electrodes without having to recalibrate. All pH measurements are automatically compensated for temperature variations with a built in thermistor located in the tip of the sensing bulb for fast and accurate temperature measurement.

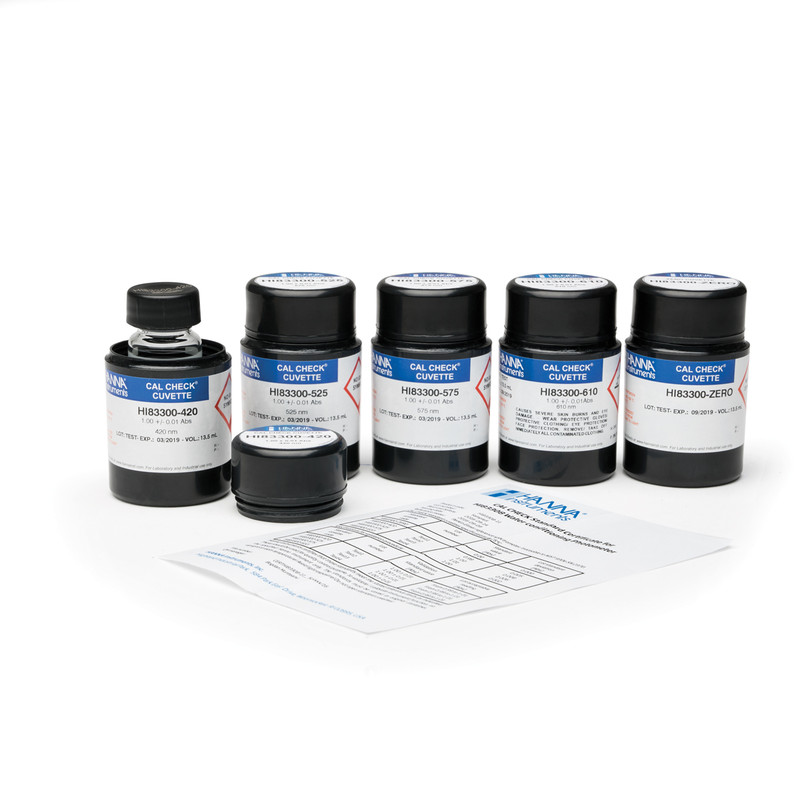

The HI83308 offers an absorbance measuring mode that allows for CAL Check^TM standards to be used to validate the performance of the system. The absorbance mode allows the user to select one of the four wavelengths of light (420 nm, 525 nm, 575 nm, and 610 nm) to measure and plot their own concentration versus absorbance mode. This is useful for users with their own chemical method and for educators to teach the concept of absorbance by using the Beer-Lambert Law.

Two USB ports are provided for transferring data to a flash drive or computer and to use as a power source for the meter. For added convenience and portability the meter can also operate on an internal 3.7 VDC Lithium-polymer rechargeable battery.

Please note, reagents are not included and can be purchased here.

Features and Benefits

Digital pH Electrode Input

Measure pH and temperature with a single probe
Good Laboratory Practice (GLP) to track calibration information including date, time, buffers used, offset and slope for traceability
pH CAL Check^TM alerts user to potential problems during the calibration process
Space saving having a pH meter and photometer built into one meter

Data Logging

Up to 1000 photometric and pH readings can be stored by simply pressing the dedicated LOG button. Logged readings are just as easily recalled by pressing the RCL button
Sample ID and User ID information can be added to a logged reading using alphanumeric keypad

Connectivity

Logged readings can be quickly and easily transferred to a flash drive using the USB-A host port or to a computer using the micro USB-B port
Data is exported as a .CSV file for use with common spreadsheet programs

Battery Status Indicator

Indicates the amount of battery life left

Error Messages

Photometric error messages include no cap, high zero, and standard too low
pH calibration messages include clean electrode, check buffer and check probe

Backlit 128 x 64 Pixel Graphic LCD Display

Backlit graphic display allows for easy viewing in low light conditions
The 128 x 64 Pixel LCD allows for a simplified user interface with virtual keys and on-screen help to guide the user through use of the meter

Built-in Reaction Timer for Photometric Measurements

The measurement is taken after the countdown timer expires.
Countdown timer ensures that all readings are taken at the appropriate reaction intervals regardless of user for better consistency in measurements

Absorbance mode

Hanna's exclusive CAL Check^TM cuvettes for validation of light source and detector
Allows for the user to plot concentration versus absorbance for a specific wavelength for use with user supplied chemistry or for teaching principles of photometry

Units of Measure

Appropriate unit of measure along with chemical form is displayed along with reading

Result Conversion

Automatically convert readings to other chemical forms with the touch of a button

Cuvette Cover

Aids in preventing stray light from affecting measurements

On-Screen Features

Method Selection Users can easily select any one of the 60 measurement methods via the dedicated METHOD button.

Data Logging Up to 1000 measurement readings can be logged with user and sample ID and recalled for future use.

pH Measurement Mode Selecting the pH measurement mode allows for the photometer to be used as a professional pH meter with many features including temperature compensated measurements, automatic two point calibration, and GLP.

Advanced Optical System

Innovative Design HI83308 is designed with an innovative optical system that incorporates a beam splitter so that light can be used for absorbance readings and for a reference detector. The reference detector monitors the intensity of light and modulates when there is drift due to power fluctuation or the heating of the optical components. Each part has an important role in providing unparalleled performance from a photometer.

High Efficiency LED Light Source An LED light source offers superior performance as compared to a tungsten lamp. LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce very little heat, which could otherwise affect the optical components an electronic stability. LEDs are available in a wide array of wavelengths, whereas tungsten lamps are supposed to be white light (all wavelengths of visible light) but actually have a poor blue/violet light output.

High Quality Narrow Band Interference Filters The narrow band interference filter not only ensure greater wavelength accuracy (+/- 1 nm) but are extremely efficient. The filters used allow up to 95% of the light from the LED to be transmitted as compared to other filters that are only 75% efficient. The higher efficiency allows for a brighter, stronger light source. The end result is higher measurement stability and less wavelength error.

Reference Detector for a Stable Light Source A beam splitter is used as part of the internal reference system of the HI83308 photometer. The reference detector compensates for any drift due to power fluctuations or ambient temperature changes. Now you can rely on a stable source of light between your blank (zero) measurement and sample measurement.

Large Cuvette Size The sample cell of the HI83308 fits a round, glass cuvette with a 25 mm path length. Along with the advanced optical components, the larger size of the cuvette greatly reduces errors in rotation from the indexing mark of the cuvettes. The relatively long path length of the sample cuvette allows the light to pass through more of the sample solution, ensuring accurate measurements even in low absorbance samples.

Focusing Lens for Greater Light Yield Adding a focusing lens to the optical path allows for the collection of all of the light that exits the cuvette and focusing the light on the silicon photo detector. This novel approach to photometric measurements cancels the errors from imperfections and scratches present in the glass cuvette eliminating the need to index the cuvette.

Parameters

Parameter	Range	Resolution	Accuracy (at 25 °C)	Method	Wavelength	Reagent Code
Absorbance	0.000 to 4.000 Abs	0.001 Abs	+/-0.003Abs @ 1.000 Abs
Ammonia, Low Range	0.00 to 3.00 mg/L (as NH₃ -N)	0.01 mg/L	±0.04 mg/L ±4% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method.	420 nm	HI93700-01
Ammonia, Medium Range	0.00 to10.00 mg/L (as NH₃-N)	0.01 mg/L	±0.05 mg/L ±5% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method	420 nm	HI93715-01
Ammonia, High Range	0.0 to 100.0 mg/L (as NH₃ -N)	0.1 mg/L	±0.5 mg/L ±5% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method	420 nm	HI93733-01
Chlorine, Free	0.00 to 5.00 mg/L (as Cl₂ )	0.01 mg/L	±0.03 mg/L ±3% of reading	Adaptation of the EPA DPD method 330.5	525 nm	HI93701-01
Chlorine, Total	0.00 to 5.00 mg/L (as Cl₂ )	0.01 mg/L	±0.03 mg/L ±3% of reading	Adaptation of the EPA DPD method 330.5	525 nm	HI93711-01
Copper, Low Range	0.000 to 1.500 mg/L (as Cu)	0.001 mg/L	±0.010 mg/L ±5% of reading	Adaptation of the EPA method	575 nm	HI95747-01
Copper, High Range	0.00 to 5.00 mg/L (as Cu)	0.01 mg/L	±0.02 mg/L ±4% of reading	Adaptation of the EPA method	575 nm	HI93702-01
Fluoride, Low Range	0.00 to 2.00 mg/L (as F)	0.01 mg/L	±0.03 mg/L ±3% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method	575 nm	HI93729-01
Iron, Low Range	0.000 to 1.600 mg/L (as Fe)	0.001 mg/L	±0.010 mg/L ±8% of reading	Adaptation of the TPTZ Method	575 nm	HI93746-01
Iron, High Range	0.00 to 5.00 mg/L (as Fe)	0.01 mg/L	±0.04 mg/L ±2% of reading	Adaptation of the EPA Phenanthroline method 315B, for natural and treated waters	525 nm	HI93721-01
Manganese, Low Range	0 to 300 µg/L (as Mn)	1 µg/L	±10 µg/L ±3% of reading	Adaptation of the PAN Method	575 nm	HI93748-01
Manganese, High Range	0.0 to 20.0 mg/L (as Mn)	0.1 mg/L	±0.2 mg/L ±3% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method	525 nm	HI93709-01
Molybdenum	0.0 to 40.0 mg/L (as Mo⁶⁺)	0.1 mg/L	±0.3 mg/L ±5% of reading	Adaptation of the mercaptoacetic acid method	420 nm	HI93730-01
Nickel, Low Range	0.000 to 1.000 mg/L (as Ni)	0.001 mg/L	±0.010 mg/L ±7% of reading	Adaptation of the PAN method	575 nm	HI93740-01
Nickel, High Range	0.00 to 7.00 g/L (as Ni)	0.01 g/L	±0.07g/L ±4% of reading	Adaptation of the photometric method	575 nm	HI93726-01
Nitrate	0.0 to 30.0 mg/L (as NO₃ - N)	0.1 mg/L	±0.5 mg/L ±10% of reading	Adaptation of the cadmium reduction method	525 nm	HI93728-01
Oxygen, Dissolved	0.0 to 10.0 mg/L (as O₂ )	0.1 mg/L	±0.4 mg/L ±3% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method	420 nm	HI93732-01
pH	6.5 to 8.5 pH	0.1 pH	±0.1 pH	Adaptation of the Phenol Red method	525 nm	HI93710-01
Phosphate, Low Range	0.00 to 2.50 mg/L (as PO₄ ^3-)	0.01 mg/L	±0.04 mg/L ±4% of reading	Adaptation of the Ascorbic Acid method	610 nm	HI93713-01
Phosphate, High Range	0.0 to 30.0 mg/L(as PO₄^3-)	0.1 mg/L	±1.0 mg/L ±4% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method	525 nm	HI93717-01
Silica, Low Range	0.00 to 2.00 mg/L (as SiO₂ )	0.01 mg/L	±0.03 mg/L ±3% of reading	Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method	610 nm	HI93705-01
Silver	0.000 to 1.000 mg/L (as Ag)	0.001 mg/L	±0.020 mg/L ±5% of reading	Adaptation of the PAN method	575 nm	HI93737-01
Zinc	0.00 to 3.00 mg/L (as Zn)	0.01 mg/L	±0.03 mg/L ±3% of reading	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method	575 nm	HI93731-01

Resources

Specifications

Specification Name	Detail
sku	HI83308-01
Wavelength Accuracy	±1 nm
Light Source	5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral bandwidth	8 nm
Input Channels	1 pH electrode input and 5 photometer wavelengths
pH Electrode	digital pH electrode (not included)
Logging Type	log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP	calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Battery Type / Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment	0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Weight	1.0 kg (2.2 lbs.)
Photometer/Colorimeter Light Detector	silicon photodetector
Cuvette Type	round, 24.6 mm
Number of Methods	128 max.
Ordering Information	Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
Warranty	2 years
Note	*Reagents are not included.
