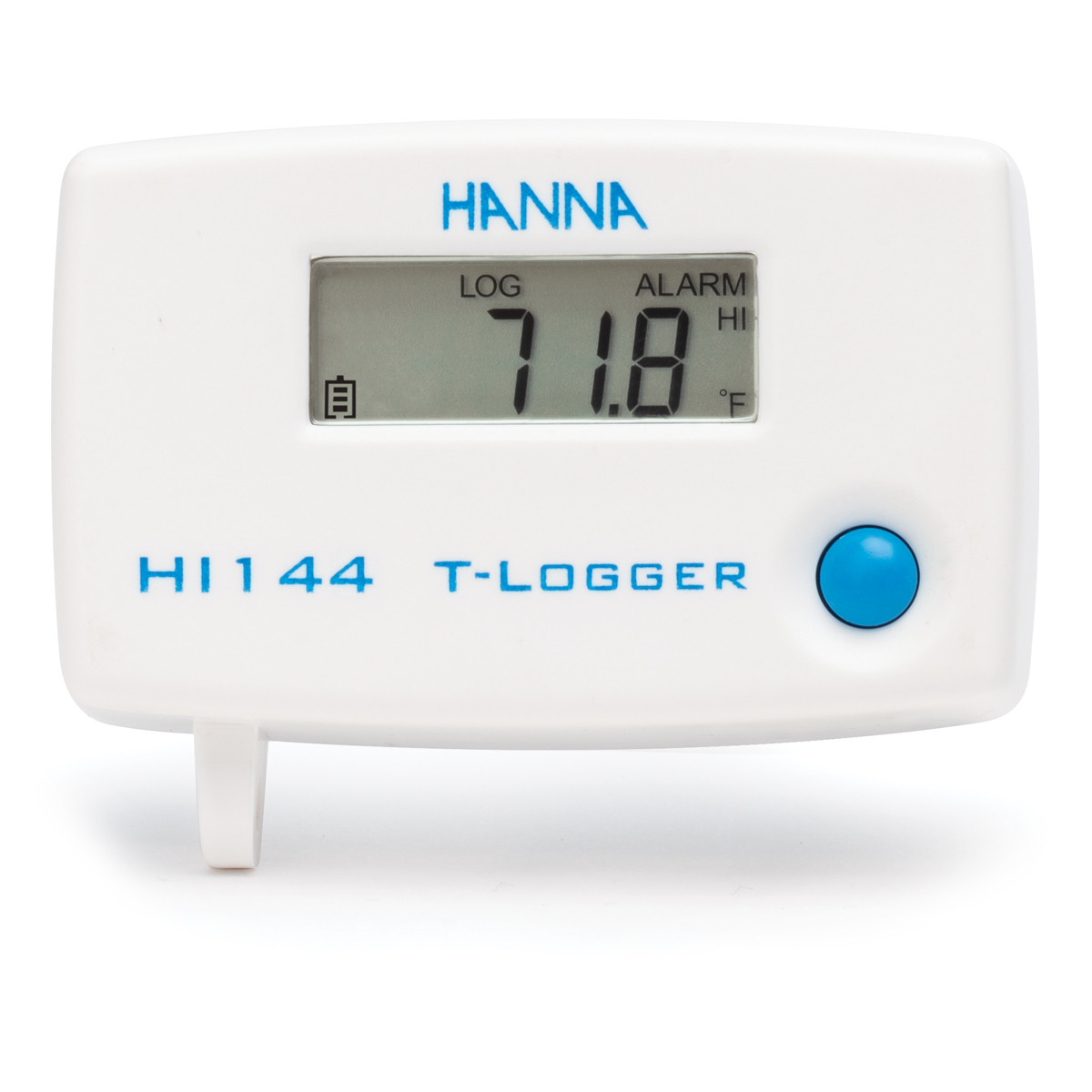

Temperature T-Logger with Locking Wall Cradle

HI144

Temperature T-Logger with Locking Wall Cradle

$69.99

The HI144 is a waterproof, temperature data logger that can be programmed to log data from 1 minute to 24 hours interval by using the docking cradle and PC software. Other programming options include high and low alarms and a choice of how the data logging starts. The HI144-10 includes the USB cradle and PC software while the HI144 is for the data logger only.

Stores up to 8,000 measurements.
2-year battery life.
Programmable high and low alarms.
Not suitable for body temperature measurements.

*Products classified as Dangerous Goods can only be shipped via ground.

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

The monitoring of environmental temperature is very important for many different applications. For cold food storage it is necessary to ensure that the product is always stored properly to maintain quality and for safety to prevent bacteria growth. The monitoring of temperature is critical through all stages in food distribution. This includes from the time it is packaged and stored to transportation to the local market or restaurant. The HI144-10 will help to be compliant in recording temperatures as part of a HACCP monitoring program.

For building maintenance these loggers can track the environmental temperatures of an office or warehouse to ensure that heating or air conditioning thermostats are programmed correctly and that the hot or cold air is distributed evenly.

Using the supplied PC software HI144-10 can be programmed to record the temperature in intervals from 1 minute to 24-hour can store up to 8,000 readings. The reading can be reviewed on a PC in both table and graphical formats. The graphing function allows the readings to be scaled for increased resolution and, if programmed, to see them in relation to the low and high alarms.

All of the programming is done through a USB docking cradle and PC software. The PC software offers graphical user interface for customizing the settings of the data logger. Once programmed the data logger can be set to start by using the PC, at a specific date/time, by push button start on the logger itself.

The HI144-10 is supplied with the HI144T-Logger, USB cradle, wall mount with lock and software. At a reduced cost, additional HI144 T-loggers can be ordered without the cradle and software. Each T-logger has its' own unique serial number to identify individual units.

Meter Features/Benefits:

Compact waterproof data logger

LCD displays temperature, high and low alarms, logging status and battery indicator
Wall mount with lock
USB docking cradle for programming and transferring of data

Programming options

Choice of start: From the PC, a specific date/time, or push button on T-Logger
Choice of measurement units: ^oC or ^oF to display on LCD
High and low alarm set points with indicators on LCD
Selectable logging interval in minutes and hours
Choice of data management: Store until full, fixed number or wrap around

Instrument status review

Battery life and days used
Serial number of device
Programmed device settings

PC software

Graphic user interface to program settings
Data export as an .xls file
Built in graphing that can be scaled with quick reference to programmed high and low alarm

Supplied Complete

The HI144-10 is supplied with the HI144 T-Logger, USB cradle, wall mount with lock and software. Additional HI144 T-loggers can be ordered separately.

Resources

Specifications

Specification Name	Detail
sku	HI144
Range	-30.0 to 70.0°C / -22.0 to 158.0°F
Resolution	0.1°C / 0.1°F
Accuracy	±0.4 °C (-20 to 60 °C); ±0.6 °C (outside) ±0.7 °F (-4 to 140 °F); ±1.1°F (outside
Calibration	Factory calibrated
Data Logging	Up to 8000 samples
Logging Interval	User selectable, from 1 minute to 24 hours
Battery	1 x CR2032 3V lithium battery, 2 years
Environment	0 to 50 ºC (32 to 122 ºF) RH max. 100%
Dimensions	60 x 37 x 17 mm (2.4 x 1.5 x 0.7’’
Weight	29.4 g (1 oz.) (with batteries)
Case Ingress Protection Rating	IP65 (watertight)
Warranty	1 year

Product Manuals

HI144 Manual Download
