BL Series Dosing Pumps

$209.99

Current Stock:

Quantity:

Adding to cart… The item has been added

Blackstone pumps are more accurate than standard pumps due to the positive displacement design ensuring each stroke is identical to the strokes before and after it, thus keeping the flow rate consistent. A wide range of BlackStone pumps with different dosing capacities are available for your specific dosing needs.

Manufactured with the highest level of mechanical precision from materials chosen for their inherent ability to resist the effects of aggressive chemicals.
Designed to meet the ever changing needs of process industry.
Each pump is supplied with discharge and suction valves.

Typical Installations

installation-bl-pump

BlackStone's positive displacement solenoid driven pumps use a minimum number of moving parts, therefore reducing the chance of mechanical failure. Part wear and oiling associated with motor driven pumps (ball-bearings, gear drives and cams) are not a concern with these pumps.

Blackstone pumps are completely sealed during assembly and offer IP65 protection against splashes and spills providing excellent protection even in hostile environments. The fiber-reinforced polypropylene housing stands up to aggressive chemicals while offering superior strength under tough industrial conditions.

Part	Max Output	Rated Pressure
With Large Diaphragm
BL20	18.3 lph (4.8 gph)	0.5 bar (7.4 psi)
BL15	15.2 lph (4.0 gph)	1 bar (14.5 psi)
BL10	10.8 lph (2.9 gph)	3 bar (43.5 psi)
BL7	7.6 lph (2.0 gph)	3 bar (43.5 psi)
With Small Diaphragm
BL5	5.0 lph (1.3 gph)	7 bar (101.5 psi)
BL3	2.9 lph (0.8 gph)	8 bar (116 psi)
BL1.5	1.5 lph (0.4 gph)	13 bar (188.5 psi)

Accessories

	HI721101 This kit contains the PVDF pump head, PTFE coated O-ring, 6 screws and washers.

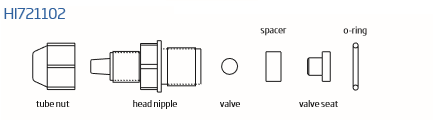

	HI721102 This kit contains all the necessary replacement parts for your discharge valve assembly. Complete with a FPM/FKM O-ring, glass valve ball, the valve spacer and seat, head nipple and the tube nut to secure the assembled parts.
	HI721103 Suction valve assembly, complete with a FPM/FKM O-ring, glass valve ball, the valve spacer and seat, head nipple and the tube nut to secure the assembled parts.
	HI721004 Complete with an injection nipple, PTFE coated spring, glass valve ball and a valve assembly.
	HI721005 This kit contains a filter with a filter holder and a valve assembly.
	HI721003 This kit contains 10 glass balls and 10 valve O-rings.
	HI721006 This kit contains 4 PVDF springs.
	HI720030 LDPE hose, 10 m (33'). Inside diameter 4.71 mm Outside diameter 7.87 mm HI720031 LDPE hose, 50 m (165'). Inside diameter 4.71 mm, Outside diameter 7.87 mm HI720032 LPDE hose, 100 m (333'). Inside diameter 4.71 mm, Outside diameter 7.87 mm
	HI721008 This kit contains 4 ceramic weights.
