EC and TDS Simple Benchtop Meter side view

HI263X

EC/TDS Simple Benchtop Meter

$644.99 - $769.99

Current Stock:

Quantity:

Adding to cart… The item has been added

Seamless design. Exceptional performance. Quality measurements. These Benchtop Meters prove that simplicity is best, combining functionality with precision. Built for regular, everyday testing, our Benchtop Meters are easy to incorporate into your lab routine.

Accurate and dependable. Collect consistent EC and TDS results
Fast and repeatable. Pair with supplied Digital Smart Conductivity Electrode for stable, noise-free readings
Convenient and user-friendly. Testing is effortless with large, readable screens and clear navigation menus

The right choice for any environment, our Simple Benchtop Meters are ideal for laboratories, colleges and universities, small to medium-sized manufacturing plants, wineries, and more.

There are two options available to choose from:

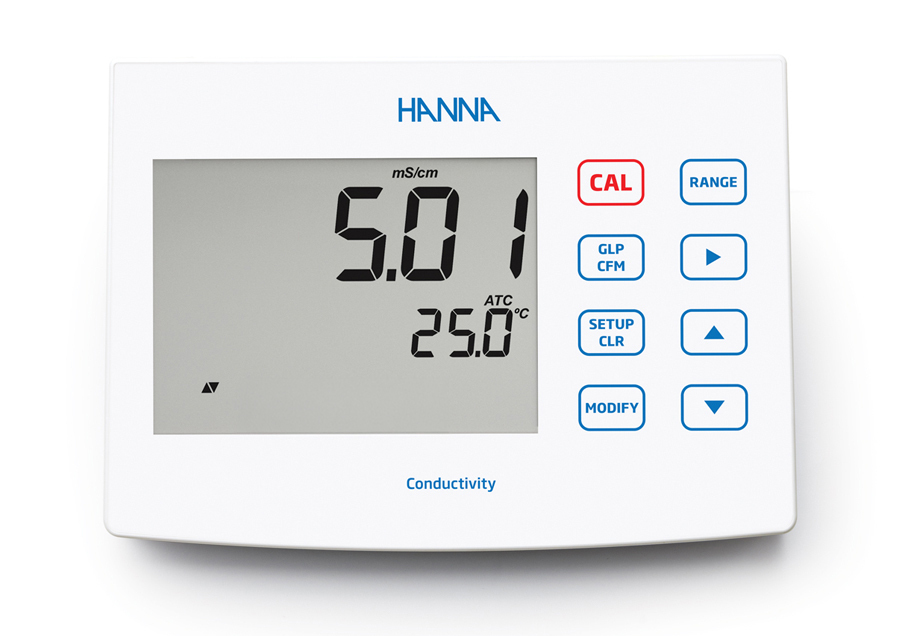

Option 1: Our EC/TDS Benchtop Meter (HI2630) with basic functionality, one operation mode, and no data logging capabilities

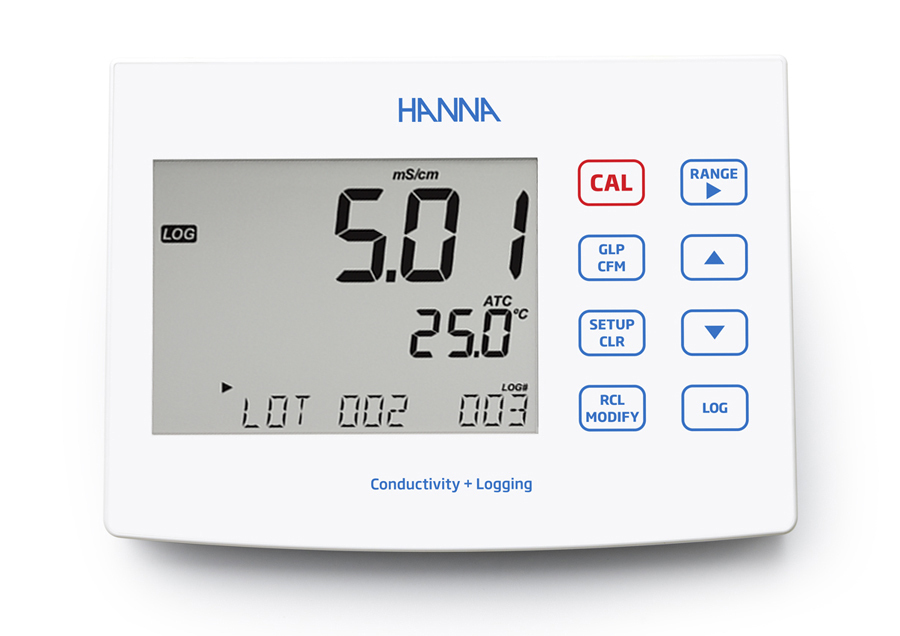

Option 2: Our EC/TDS Benchtop Meter (HI2631) with two operation modes (standard and basic) and the ability to log, store, and transfer GLP data

HI2630 Features

Conductivity Measurement: Yes (μS/cm, mS/cm)
TDS Measurement: Yes (ppm (mg/L), g/L)

Salinity Measurement: No
Data Logging: No
PC/USB Data Export: No
Standard Mode (Full Features): No

HI2631 Features

Conductivity Measurement: Yes (μS/cm, mS/cm)
TDS Measurement: Yes (ppm (mg/L), g/L)

Salinity Measurement: Yes (NaCl, PSU, g/L)
Data Logging: Yes (up to 1000 logs)
PC/USB Data Export: Yes
Standard Mode (Full Features): Yes

The Benchtop Meter for every lab setting

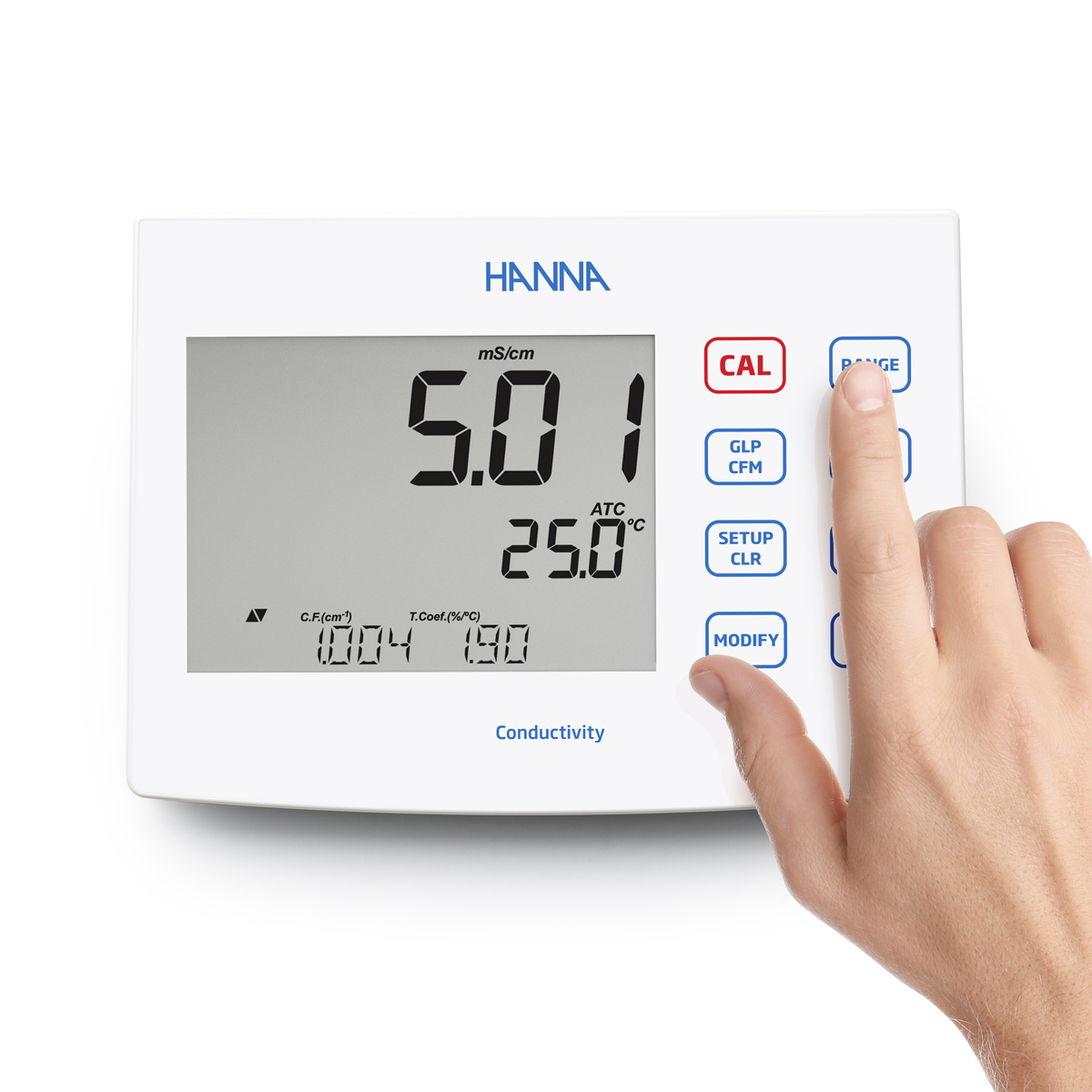

With a color LCD display, capacitive touch keypad, and clear on-screen text guides, users can easily set up, calibrate, and measure quickly. Our Simple Benchtop Meters are designed for both experienced professionals and those who prefer a straightforward, streamlined workflow.

Digital Smart Electrodes for enhanced measurements

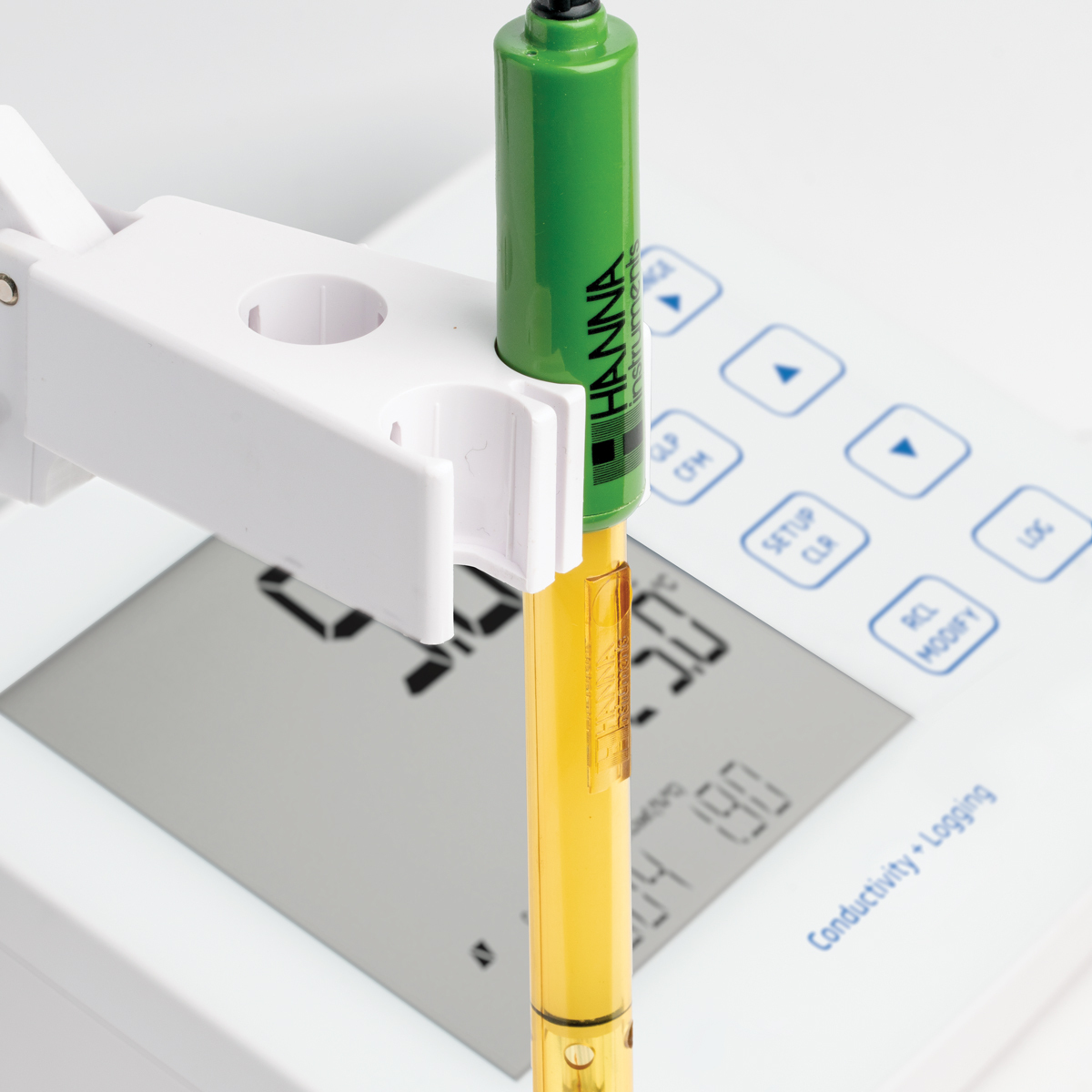

Our Simple Benchtop Meters (HI2630 and HI2631) measure EC and TDS with the supplied Conductivity Digital Smart Electrode (HI763100).

Advantages of our Conductivity Digital Electrode include:

Designed for various industries and applications, this probe is durable and suitable for use in chemical analysis
Collect stable readings even in electrically noisy environments and eliminate drift with automatic noise filtering and digital processing
Built-in temperature sensor ensures optimal temperature compensation. There’s no need to manage an additional temperature probe
Change electrodes easily without recalibrating. All data from the last calibration is stored in the electrode for faster setup and less maintenance when switching electrodes
Gain traceability with auto sensor recognition and a unique serial ID number for each Digital Electrode
Equipped with a modern 3.5 mm connector that is sealed to protect against moisture and corrosion

Watch & Discover the HI2600 Series

A quick look at its design and ease of use.

https://cdn11.bigcommerce.com/s-l8qlnhq2eh/images/stencil/500x500/products/5161/11899/HI9814_F__07831.1746708569.jpg

HI9814 GroLine Waterproof Portable pH/EC/TDS Meter 299.99

Resources

What's included

Specifications

Product manual

EC/TDS Starter Benchtop Meter (HI2630/HI2631)

HI763100 Digital conductivity electrode

EC calibration kit:

- 1413 μS/cm conductivity standard solution (4 sachets)

- 12880 μS/cm conductivity standard solution (2 sachets)

- 5000 μS/cm conductivity standard solution (2 sachets)

- Electrode rinse solution (2 sachets)

HI764026 Electrode holder for HI2600 family

HI920018 1.5 m USB-C to USB-C cable

USB-C power adapter

Instrument quality certificate

Electrode quality certificate

Battery safety insert

Quick reference guide with QR code for instruction manual download

Specification	Detail
HI2630 and HI2631	using the four-ring conductivity probe
EC Range	0.00 to 29.99 μS/cm 30.0 to 299.9 μS/cm 300 to 2999 μS/cm 3.00 to 29.99 mS/cm 30.0 to 200.0 mS/cm up to 500.0 mS/cm absolute conductivity ‡
EC Resolution	0.01 μS/cm 0.1 μS/cm 1 μS/cm 0.01 mS/cm 0.1 mS/cm
EC Accuracy at 25 °C / 77 °F	±1% of reading (±0.05 μS/cm or 1 digit,whichever is greater)
TDS Range	0.00 to 14.99 ppm (mg/L) 15.0 to 149.9 ppm (mg/L)150 to 1499 ppm (mg/L) 1.50 to 14.99 g/L 15.0 to 100.0 g/L up to 400.0 g/L (with 0.80 factor) absoluteTDS***
TDS Resolution	0.01 ppm 0.1 ppm 1 ppm 0.01 g/L
TDS Accuracy at 25 °C / 77 °F	±1% of reading (±0.03 ppm or 1 digit, whichever is greater
*Salinity Range**	0.0 to 400.0 % NaCl 2.00 to 42.00 PSU 0.00 to 80.00 g/L
*Salinity Resolution**	0.1% NaCl 0.01 PSU 0.01 g/L
*Salinity Accuracy at 25 °C / 77 °F**	±1% of reading
Temperature Range	−20.0 to 120.0 °C**(−4.0 to 248.0 °F)
Temperature Resolution	0.1 °C (0.1 °F)
Temperature Accuracy at 25 °C / 77 °F	±0.5 °C (0.9 °F)
EC calibration	"Cell factor calibration Six standards available: 84 µS/cm, 1413 μS/cm 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm One point offset: 0.00 μS/cm"
*Salinity calibration (% NaCl only)**	Single point with HI7037 standard
Temperature compensation	• Automatic, −5 to 100 °C (23 to 212 °F) • NoTC, can be selected to measure absolute conductivity
Conductivity temperature coefficient*	0.00 to 6.00 %/°C (EC and TDS only) (1.90 %/°C default)
TDS factor*	0.40 to 0.80 (0.50 default)
DO Salinity compensation	0 to 40 g/L
Logging (HI2631 only)	Up to 1000* (400) records organized in: • Manual log-on-demand, maximum 200 logs • Manual log-on-stability, maximum 200 logs • Interval logging, maximum 600 logs (100 lots)*
Notes	When operating in Standard Mode in HI2631 only!br>* Temperature limits will be reduced to actual probe limits. *** Absolute conductivity (TDS) is the conductivity value without temperature compensation.
PC interface (HI2631 only)	USB-C
Power supply	USB Type C (5 VDC; 500 mA)
Environment	0 to 50 °C (32 to 122 °F) Maximum 95 % RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0 inches)
Weight	Approximately 0.85 kg (1.87 lbs.)
