HI6221-01

Advanced pH/ORP Benchtop Meter

$1,124.99

Current Stock:

Quantity:

Adding to cart… The item has been added

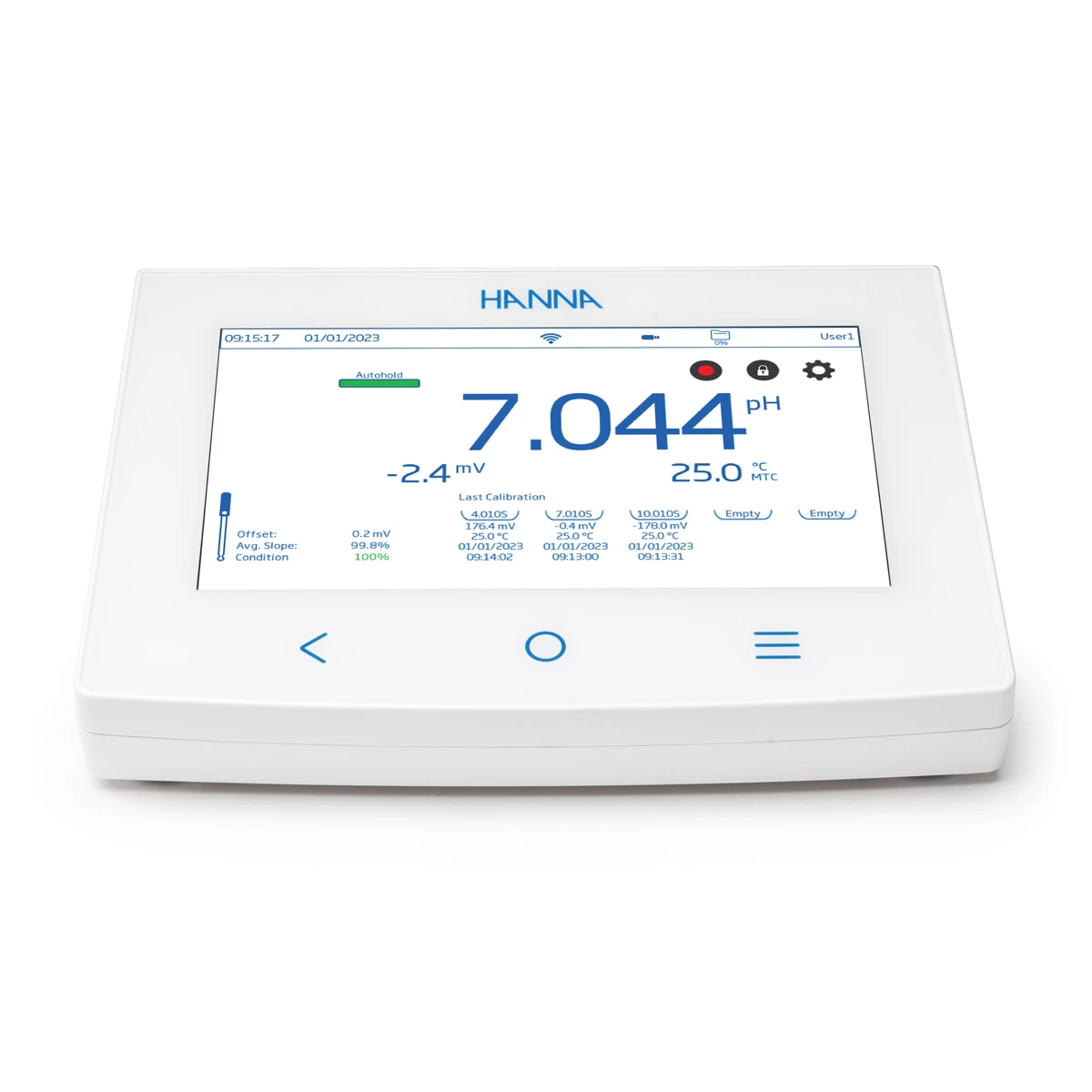

Our Advanced pH/ORP Benchtop Meter (HI6221) is a streamlined benchtop meter with a large touch screen display, comprised of a housing and an integrated pH/ORP measurement module. Compact and easy to operate, the benchtop meter is delivered with Hanna Instruments' HI1131B double junction combination pH electrode, together with HI7662-TW temperature probe.

The Refillable Combination pH Electrode (HI1131B) is a glass body, double junction, refillable pH electrode with an indicating sensor made of High Temperature (HT) glass. The double junction reference and HT glass design allow the HI1131B to be used in a wide variety of applications including samples with metals and elevated temperatures. The probe connection to the unit is secured through a galvanically isolated BNC connection.

The Stainless Steel Temperature Probe (HI7662-TW) allows the meter to automatically temperature compensate (ATC) pH measurements. This system responds to a complex range of measurement and monitoring requirements, providing accuracy, reproducibility, and reliability.

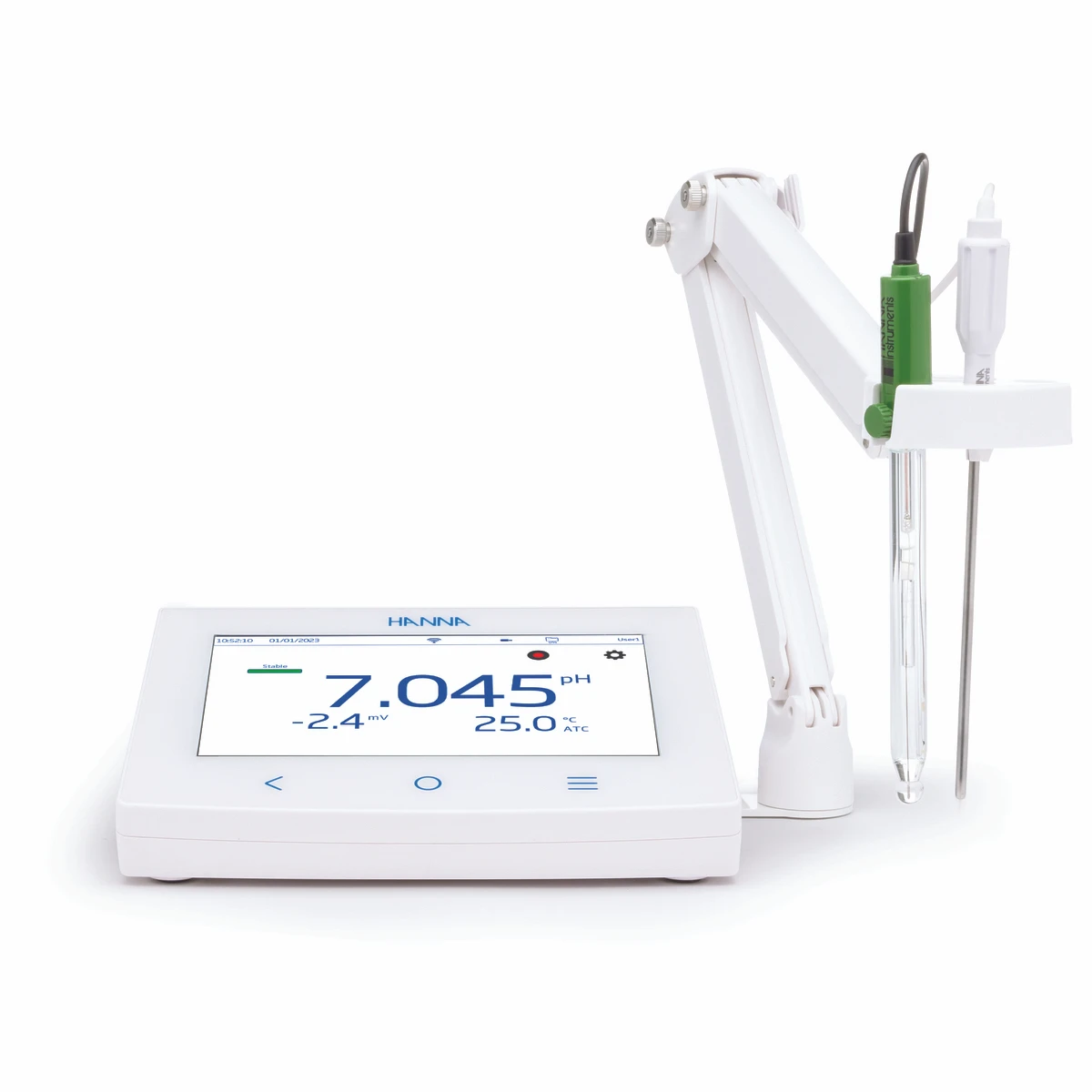

Electrode Holder with Flexible Arm Design

The HI6221 is supplied with an electrode holder that has a flexible arm. The holder can be mounted quickly and provides secure support for electrodes while taking measurements in sample containers.

User Interface

7-inch capacitive touch screen with multi-touch support
Capacitive touch back, home and system menu keys
User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions
The user can select between five different views:
- Basic measurement configuration
- Simple GLP with calibration information
- Full GLP with electrode status and calibration point details
- Live updated, interactive graph
- Tabulated data with date, time, and notes

Measurement

Measure pH/mV (pH) or mV/Rel.mV (ORP) with temperature
Application-specific profiles allow quick and direct measurement without the need to update the sensor and system settings
Active log during measurement
Measurement stability indicator (using the Stability Criteria setting)
Reading modes: direct and direct/autohold
Temperature compensation can be Automatic (using temperature probe) or set manually
Audible and/or alarm messages for measurements outside of predefined limits
Galvanic isolation for pH/ORP measurement

Calibration

The HI6221 features 5-point pH calibration capacity with automatic recognition for standard buffers (Hanna and NIST buffers). In addition, a choice of standard or custom buffers for calibration along with non-volatile memory, which saves data and settings

Connectivity features & services

Transfer logged data to a USB thumb drive
Log files that include measurements and calibration data (as .csv file)
FTP and email for log export via Ethernet and Wi-Fi connection
USB type A for USB stick, keyboard, and printer
USB type C for USB stick and PC connection

Help section for meter guidance

Video support presentation of main functionalities

https://cdn11.bigcommerce.com/s-l8qlnhq2eh/images/stencil/500x500/products/5161/11899/HI9814_F__07831.1746708569.jpg

HI9814 GroLine Waterproof Portable pH/EC/TDS Meter 299.99

Resources

Specifications

Manuals

Specification	Detail
SKU	HI6221-01
pH Range	pH: -2.0 to 20.0 pH -2.00 to 20.00 pH -2.000 to 20.000 pH
pH Resolution	0.1 pH 0.01 pH 0.001 pH
pH Accuracy (@25°C/77°F)	±0.1 pH ±0.01 pH ±0.002 pH (±1 last significant digit)
pH Calibration	automatic, semiautomatic, manual up to five-point calibration eight standard buffers available (1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers
pH Temperature Compensation	Manual or Automatic
Temperature Range	20.0 to 120.0 °C, -4.0 to 248.0 °F, 253.0 to 393.0 K
Temperature Resolution	0.1 °C / 0.1 °F / 0.1 K
Temperature Accuracy	±0.2 °C / ±0.4 °F / ±0.2 K
pH Electrode	HI1131B glass body
Temperature Probe	HI7662-TW stainless steel temperature probe
Power Supply	DC adapter 100-240AC to 24VDC 2.5A
Environment	0 - 50 °C / 32 - 122 °F / 273 - 323 K maximum 95% RH non-condensing
Dimensions	205 x 160 x 77 mm (8.0 x 6.2 x 3.0)
Weight	Approximately 1.2 kg (26.5 lbs.)
Ordering Information	HI6221 is supplied with HI1131B pH electrode HI7662-TW temperature probe pH calibration starter kit consisting of: pH 4.01 buffer solution sachet (2 pcs.) pH 7.01 buffer solution sachet (4 pcs.) pH 10.01 buffer solution sachet (2 pcs.) HI700601 electrode cleaning solution sachet (2 pcs.) HI7082 3.5M KCl electrolyte solution (30 mL) HI764060 electrode holder capillary pipette 24 VDC power adapter USB-C to USB-A cable quick reference guide with instrument quality certificate.
Warranty	2 years
