HI190M-0

Magnetic Mini-Stirrer (12VDC)

$89.99

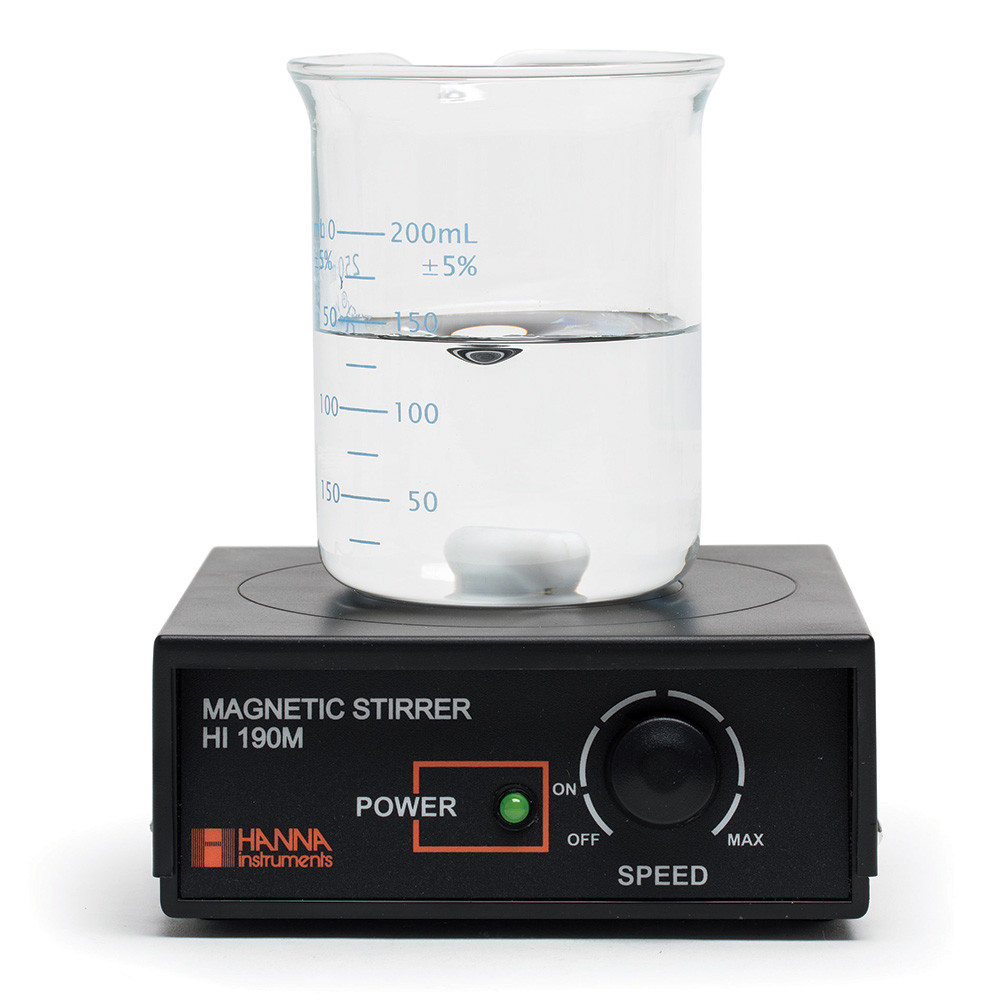

HI190M-0 is a compact and lightweight magnetic stirrer that operates on 12VDC (sold separately). The HI710005 12VDC adapter is a required accessory to power the mini-stirrer. This mini-stirrer is built to last having a ABS plastic housing and cover that are resistant to many harmful chemicals. The stirring speed is adjustable from 100 to 1000 RPM. The HI190M-0 stirrer requires very little room which is valuable when laboratory benchtop space is at a premium.

Speedsafe™ mechanism
Power indicating light
Adjustable speed control

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

Ideally, when performing electrochemistry measurements, the sample being tested should be stirred. The use of a magnetic stirrer allows for proper mixing and the sample to be homogenous in consistency and temperature. The stirring of the sample also helps speed up the response time for a sensor to achieve a stable reading.

Compact & Cost-Effective

The HI190M-0 mini-magnetic stirrer is compact and lightweight, allowing for easy handling in the laboratory environment. Limited area on laboratory benchtops is no longer a concern with this durable, space-saving stirrer. Power-indicating LED lights also assure users at a distance that the stirrer is in operation. The durable plastic covering will resist harmful effects of accidentally spilled chemicals. The HI190M-0 magnetic mini-stirrer is cost-effective for the customer that does not need the added expense of a heating element. The advanced design incorporates electronic controls that allow the user to easily regulate the speed with great precision.

Speedsafe^™

Often in the lab, a sample is removed from a stirrer before the speed is adequately reduced. Normally this would cause the internal motor to accelerate until it is damaged. To control the speed from changes in viscosity or removing of the load the HI190M-0 magnetic mini-stirrer incorporates the Speedsafe^™ mechanism. With Speedsafe^™, a speed sensing device (opto-sensor) is coupled with an FVC (frequency voltage converter) to monitor the stirring speed. As the speed reaches a preset maximum level, the speed limiter shuts down the VCO (voltage-controlled oscillator) to slow down the motor speed. This ensures that when the load is suddenly removed from the stirrer, the motor will not accelerate to such a high speed that will be hazardous to both the user and the stirrer; a feature not commonly found in conventional stirrers.

Resources

Specifications

Specification Name	Detail
Sku	HI190M-0
Maximum Stirring Capacity	1 liter (0.26 gallons)
Speed Range Min	100 rpm
Speed Range Max	1000 rpm
Installation Category	II
Cover Material	ABS Plastic
Environment	0 to 50˚C (32 to 122˚F); RH max 95%
Dimensions	120 x 120 x 45 mm (4.8 x 4.8 x 1.8")
Weight	640 g (1.4 lb.)
Warranty	2 years

Product Manuals

IST190_06_18-1 Download
