Air and Gas K-Type Thermocouple Probe with Handle

HI766D

Air and Gas K-Type Thermocouple Probe with Handle

$109.99

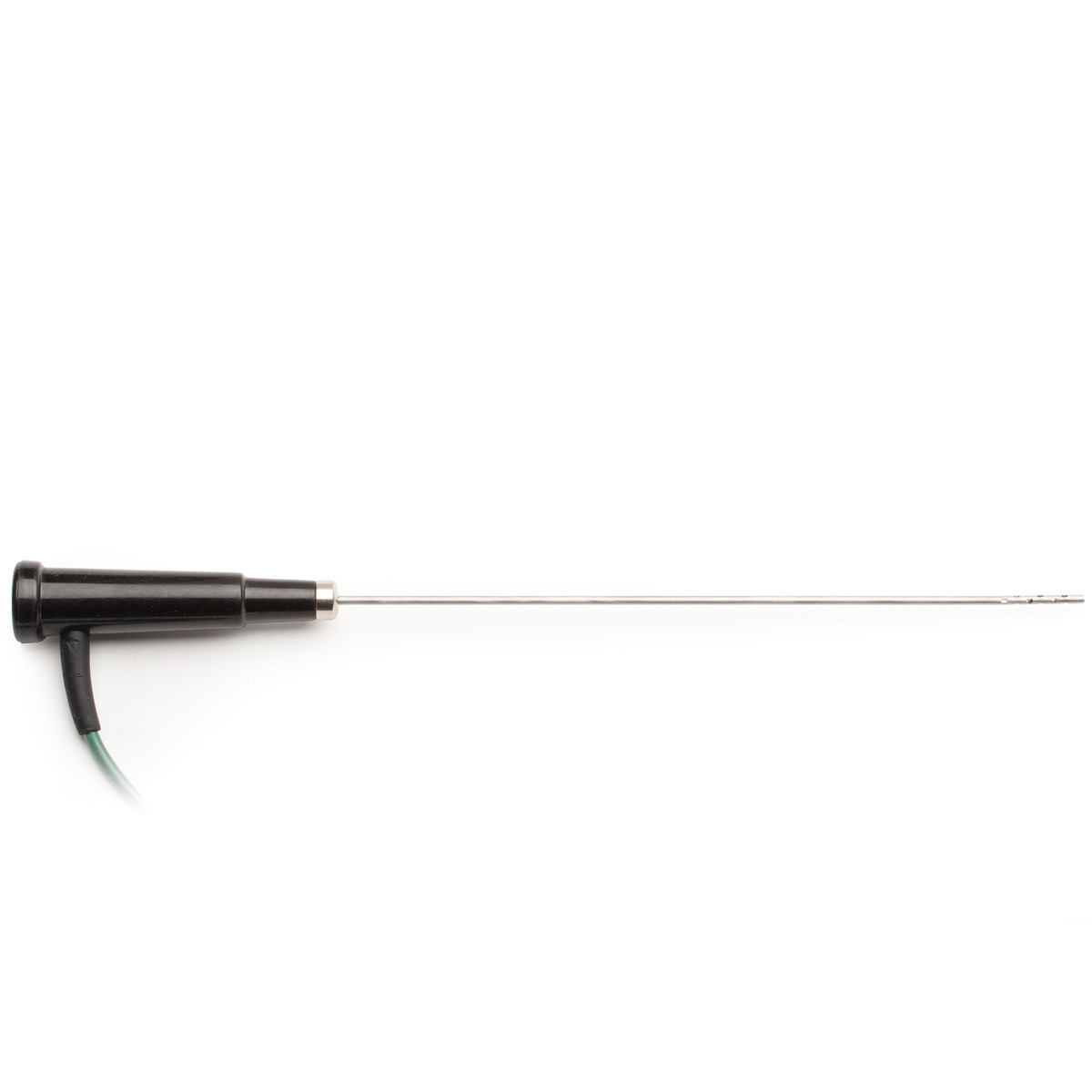

The HI766D is an air and gas K-type thermocouple probe with a handle designed for use with a thermocouple thermometer. A green cable extends 1 m (3.3') from the handle to the thermocouple connector with the meter. The vent holes at the tip of the probe allow users to obtain highly accurate temperature readings of air and gases.

Measures up to 300°C (570°F)
20 second response time
Stainless steel

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

The Air and Gas K-Type Thermocouple Probe with Handle - HI766D is designed to measure the temperature of air and gas samples. The response time of a measurement is affected by the position of the sensor relative to the substance being measured. The HI766D construction with vent holes located at the tip of the probe offers a 20-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure gaseous samples up to 300°C (570°F).

Keep extra testing supplies on-hand

HI935002 Dual Channel K-Type Thermocouple Thermometer $159.99

Resources

Specifications

Specification Name	Detail
SKU	HI766D
Recommended Operating Temperature	300°C (570°F)
Response Time (90% of final value)	5 seconds
Body Length	L 245 mm x dia 3 mm (9.6" x 0.12")
Temperature Sensor	yes
Body Material	stainless steel
Cable	polyurethane (PUR)/coiled; 1 m (3.3')
Recommended Use	air, gases
Connection	K-Type
