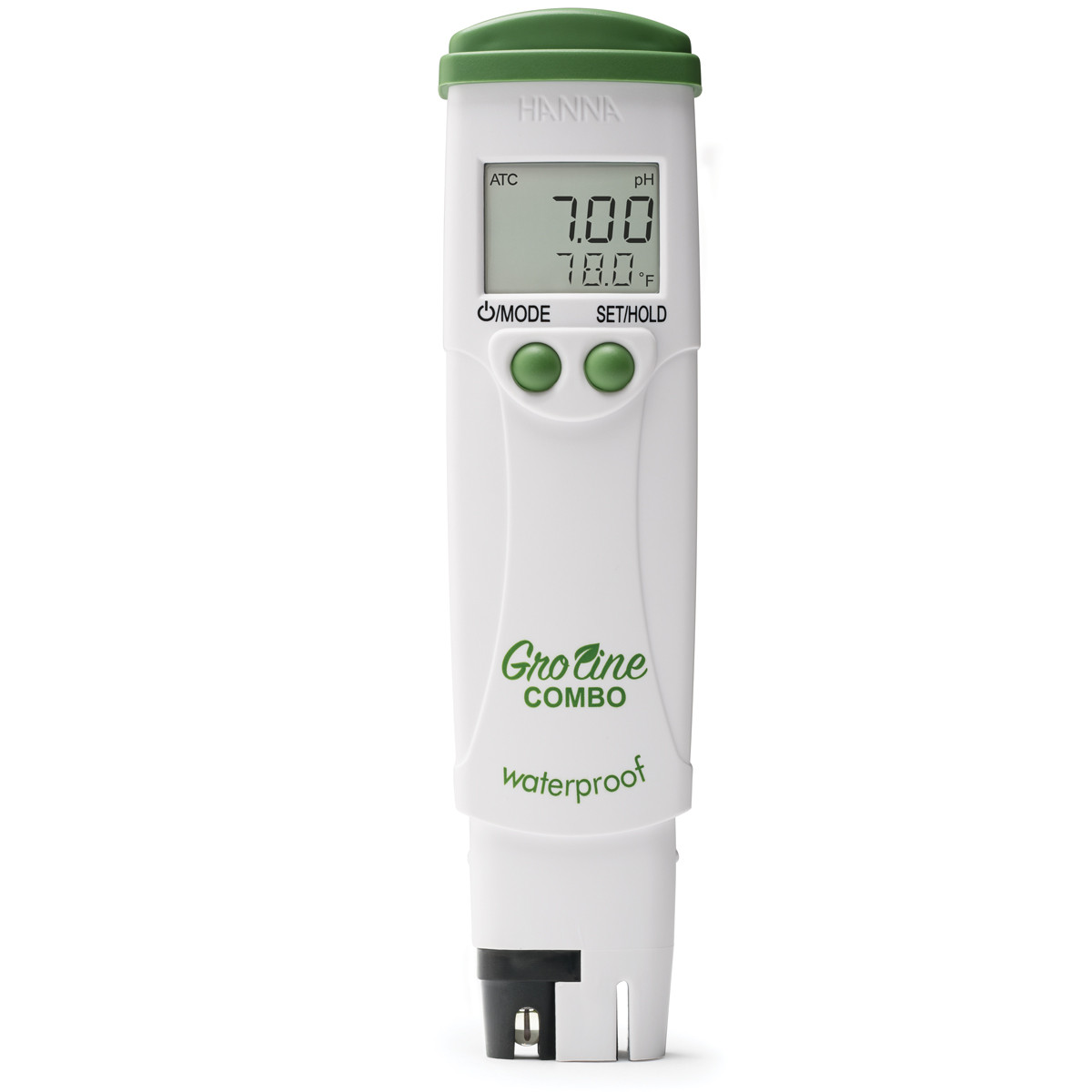

The HI98131 GroLine pH and tds water tester features a large multi level LCD which displays both pH, EC or TDS and temperature readings simultaneously. The pH readings are displayed with a 0.01 resolution and with an accuracy of +/-0.05 pH, while the EC and TDS readings are displayed with a 0.01 mS/cm and 10 ppm (mg/L) resolution and 2% full scale accuracy. The EC range of the HI98131 is from 0.01 to 6.00 mS/cm and TDS is from 0 to 3000 ppm using a 0.5 conversion factor. The HI98131 also offers the option to use a 0.7 (700 ppm) EC to TDS conversion factor. An exposed temperature sensor allows for rapid temperature compensated measurements of EC and TDS. The LCD screen has indicators for calibration status and stability. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available. The HI98131 is a versatile pocket meter designed for hydroponics, greenhouse and agriculture applications.
Simplified one button calibration
One or two point pH calibration is automatic to a pre-programmed buffer set (4.01, 7.01 and 10.01) or single point pH and EC calibration with the Hanna Quick Cal calibration solution. To perform a quick cal calibration, simply press and hold the left power/mode button while in measurement mode for three seconds and let go to enter calibration mode. Once both pH and EC are calibrated "CAL OK" is displayed and the meter returns to measurement mode.
HI73127 Replaceable pH electrode
The HI99131 tds water tester is supplied with the HI73127 replaceable pH electrode. This electrode features an extractable junction that can be pulled 1/8" out to clear any clogging that results in drifting and erratic readings.
3 sensors in a single meter
pH electrode with extractable junction
Amperometric EC/TDS sensor
Exposed temperature probe for faster EC/TDS readings
Designed to withstand the humidity of a growing environment
pH range is from 0.00 to 14.00 pH
Wide pH Range
Choice of either a 0.5 or 0.7 conversion factor0.5 (500 CF) conversion factor is for an EC reading of 1000 μS/cm = 500 ppm0.7 (700 CF) conversion factor is for an EC reading of 1000 μS/cm = 700 ppm
Selectable EC to TDS conversion factor
All readings are compensated for variations in temperatureTemperature displayed in oC or oF along with pH, EC or TDS reading
- Automatic Temperature Compensation
Meter displays a clock tag that will disappear when the reading has achieved stability
Freezes reading on the display to allow recording of measurement
Meter will automatically shut off if there is not enough power to get an accurate measurement
BEPS (Battery Error Prevention System
- Battery % level at startup
When the level is below 5%, the battery symbol on the LCD blinks to indicate a low battery condition.
- Low Battery Indicator
Selectable time before meter will automatically shuts off to conserve battery life. Options are after 8 minutes, 60 minutes , or disabled.
pH Range 0.00 to 14.00 pH pH Resolution 0.01 pH pH Accuracy (@25ºC/77ºF) ±0.1 pH pH Calibration automatic, at one or two points using standard buffers (pH 4.01, 7.01,10.01); one point calibration using quick calibration solution Conductivity Range 0.00 to 6.00 mS/cm Conductivity Resolution 0.01 mS/cm Conductivity Accuracy (@25ºC/77ºF) ±2% F.S. TDS Range 0 to 3000 ppm (500 CF); 0 to 3999 ppm (700 CF) TDS Resolution 10 ppm (mg/L) TDS Accuracy ±2% F.S. Temperature Range 0.0 to 60.0°C / 32.0 to 140.0°F Temperature Resolution 0.1°C / 0.1°F Temperature Accuracy (@25ºC/77ºF) ±0.5°C /±1°F Temperature Compensation pH: automatic; EC/TDS: automatic with β set at 1.9%/°C EC/TDS Calibration automatic, one-point at 1.41 mS/cm or 5.00 mS/cm; one point calibration using quick calibration solution TDS Conversion Factor 0.5 (500 ppm) or 0.7 (700 ppm) Battery Type/Life 1.5V (4) / approx. 100 hours of continuous use, auto-off after 8 minutes of non-use Auto-off after 8 minutes, 60 minutes, disabled Environment 0 to 50°C (32 to 122°F); RH max 100% Dimensions 163 x 40 x 26 mm (6.4 x 1.6 x 1.0’’) Weight 100 g (3.5 oz.) Ordering Information HI98131 is supplied with HI73127 pH electrode, HI73128 electrode removal tool, batteries (4), instructions and quality certificate. Warranty 1 year
