HI98594

Portable Multiparameter pH/EC/Turbidity/opdo® Meter with Bluetooth®

$3,899.99 - $4,399.99

Current Stock:

Quantity:

Adding to cart… The item has been added

Our Portable Multiparameter pH/EC/Turbidity/odpo® Meter with Bluetooth® (HI98594) makes testing simple and convenient. Monitor up to 14 different water quality parameters with just one device including pH, ORP, turbidity, EC/TDS, dissolved oxygen, resistivity, salinity, seawater σ, atmospheric pressure, and temperature.

Resources

Ideal for environmental and field measurements
Rugged design includes water-resistant meter and waterproof probe
Meter features an easy-to-read graphic backlit display with on-screen graphing capability
User-friendly and easy to operate. Testing is hassle-free with this meter's intuitive keypad and straightforward navigation menus
Multiple cable length options are available
Monitors up to 14 water quality parameters (7 measured and 7 calculated) including pH, ORP, turbidity, EC/TDS, dissolved oxygen, resistivity, salinity, seawater σ, atmospheric pressure, and temperature
Each parameter is completely configurable
Achieve instantaneous conductivity and turbidity measurements
Meter is enclosed in an IP67-rated waterproof casing and can be immersed in water at a depth of 1 m for up to 30 minutes
Multisensor probe (HI7698594) is IP68-rated for continuous submersion in water and is totally sealed against water and dust
This meter will automatically detect when the probe is securely connected. Meter attaches to the multisensor probe through a single waterproof quick din connector which makes fastening and removing the probe convenient
The multisensor probe is supplied with pre-installed pH/ORP, EC, turbidity, and optical dissolved oxygen sensors. These replaceable field sensors are automatically recognized by the meter
The optical dissolved oxygen sensor uses a smart cap that has an RFID tag that stores calibration coefficients unique to each cap. The RFID keeps track of the age of the cap and alerts the user when it's time for replacement
Changing a sensor is fast and simple. All field sensors are constructed with a replaceable, screw type connector and are color coded for easy identification
pH, EC, and dissolved oxygen measurements are automatically compensated for temperature variations
This meter is designed with a built-in barometer for percent saturation and dissolved oxygen measurement compensation. All dissolved oxygen concentration measurements are automatically compensated for barometric pressure and salinity
Quick calibration provides a speedy, single point calibration for pH, conductivity, and dissolved oxygen. Standard calibration options are available for pH up to three points, conductivity at one-point, dissolved oxygen up to two points, and turbidity with three provided standards
Manufactured with a dual power source battery system for extended use in the field. This meter operates on a built-in lithium-ion battery. Once the rechargeable batteries run low, the meter will automatically switch and default to the 1.5 AA alkaline batteries

Logged data is graphically displayed on a backlit LCD screen
Features log-on-demand and automatic logging on meter for all parameters
This meter can log one data point or continuously log at selected time intervals
There is an option for logged data to be stored in a named lot with the ability to add comments
All Good Laboratory Practice (GLP) data is stored. Calibration information is captured with time and date stamp and includes calibration values as well as other values that can impact the measurement
GLP feature allows for the last five calibrations to be stored automatically

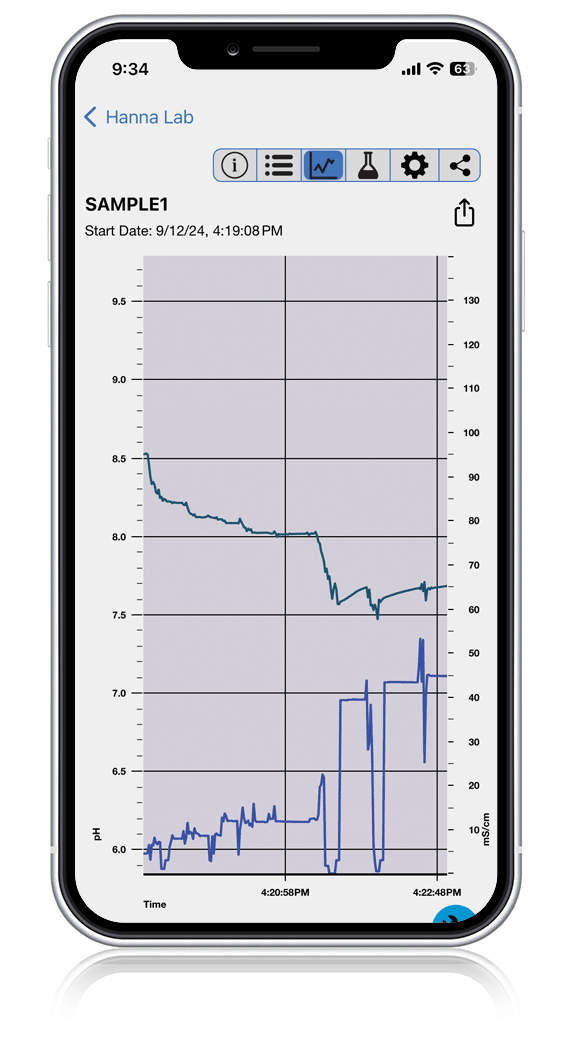

There are many benefits to using the Hanna Lab App to analyze logged data on a phone or tablet. Users are able to review comprehensive GLP data for all parameters, have the option to graph logged data for trend analysis, and can select the measurement units to be displayed independently of the meter settings

This meter is equipped with Bluetooth® 5.0 wireless technology and is Hanna Lab App compatible
The Hanna Lab App now features Hanna Cloud compatibility
Download and transfer logged data as a CSV or PDF file
Easily review data and access or email log lots using a phone or tablet with Bluetooth® connection and the Hanna Lab App
USB Type-C port can be used to charge the meter and export data via a USB Flash Drive or direct PC connection
Capable of remote firmware updates via the Hanna Lab App

Specification Name	Detail
sku	HI98594
pH Range	0.00 to 13.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.05 pH (Accuracy is evaluated with a calibrated system at ambient temperature.)
pH Calibration	One point using HI9828-20 Quick Calibration Solution Up to three points using pH 4.01, pH 6.86, pH 7.01, pH 9.18, pH 10.01 standard buffers and one customer buffer
mV Range	±600.0 mV
mV Resolution	0.1 mV
mV Accuracy	±3.0 mV (Accuracy is evaluated with a calibrated system at ambient temperature.)
ORP Range	±2000.0 mV
ORP Resolution	0.1 mV
ORP Accuracy	±10.0 mV (Accuracy is evaluated with a calibrated system at ambient temperature.)
ORP Calibration	Automatic at one custom point (relative mV)
Temperature Range	-5.00 to 50.00 °C; 23.00 to 122.00 °F; 268.15 to 323.15 K
Temperature Resolution	0.01 °C; 0.01 °F; 0.01 K
Temperature Accuracy	±0.15 °C; ±0.27 °F; ±0.15 K
Temperature Calibration	Automatic at one custom point
EC Range	0 to 200 mS/cm; 0 to 400 mS/cm (absolute)
EC Resolution	Manual: 1 µS/cm 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm Automatic: 1 µS/cm from 0 to 9999 µS/cm 0.01 mS/cm from 10.00 to 99.99 mS/cm 0.1 mS/cm from 100.0 to 400.0 mS/cm Automatic (mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm 0.01 mS/cm from 10.00 to 99.99 mS/cm 0.1 mS/cm from 100.0 to 400.0 mS/cm
EC Accuracy	±1% of reading or ±1 µS/cm, whichever is greater (Accuracy is evaluated with a calibrated system at ambient temperature.)
EC Calibration	One point using HI9828-20 Quick Calibration Solution One point using 84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm standard solutions or custom point
TDS Range	0 to 400000 ppm (mg/L) (the maximum value depends on the TDS factor)
TDS Resolution	Manual: 1 ppm (mg/L) 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L) Automatic: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L) 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L) 0.1 ppt (g/L) from 100.00 to 400.0 ppt (g/L) Automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 ppt (g/L) 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L) 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L)
TDS Accuracy	± 1 % of reading or ± 1 ppm (mg/L), whichever is greater
TDS Calibration	Based on conductivity or salinity calibration
DO Range	0.0 to 500.0 % saturation; 0.00 to 50.00 ppm (mg/L)
DO Resolution	0.1 % saturation; 0.01 ppm (mg/L)
DO Accuracy	±1.5 % of reading from 0.0 to 200.0 % saturation ±5 % of reading from 200.0 to 500.0 % saturation ±1.5 % of reading from 0.00 to 20.00 mg/L ±5 % of reading from 20.00 to 50.00 mg/L (Accuracy is evaluated with a calibrated system at ambient temperature.)
DO Calibration	One point, quick calibration in water-saturated air One or two points, at 100 % and 0 % One point, using a custom solution (% saturation or mg/L)
Barometric Pressure Range	450.0 to 850.0 mmHg; 17.72 to 33.46 inHg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa
Barometric Pressure Resolution	0.1 mmHg; 0.01 inHg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa
Barometric Pressure Accuracy	±3.0 mmHg within ±15 °C from calibration temperature
Barometric Pressure Calibration	Automatic at one custom point
Resistivity Range	0 to 999999 Ω·cm; 0 to 1000.0 kΩ·cm (depending on resistivity reading); 0 to 1.000 MΩ·cm
Resistivity Resolution	1 Ω·cm; 0.1 kΩ·cm; 0.0001 MΩ·cm
Resistivity Calibration	Based on conductivity calibration
Salinity Range	0.00 to 70.00 PSU
Salinity Resolution	0.01 PSU
Salinity Accuracy	±2 % of reading or ±0.01 PSU, whichever is greater
Salinity Calibration	One point, using a custom solution
Seawater Sigma Range	0.0 to 50.0 σ_t, σ₀,σ₁₅
Seawater Sigma Resolution	0.1 σ_t, σ₀,σ₁₅
Seawater Sigma Accuracy	±1.0 σ_t, σ₀,σ₁₅
Seawater Calibration	Based on conductivity or salinity calibration
Turbidity Range	0.0 to 99.9 FNU; 100 to 1000 FNU
Turbidity Resolution	0.1 FNU from 0.0 to 99.9 FNU; 1 FNU from 100 to 1000 FNU
Turbidity Accuracy	±0.3 FNU or ±2 % of reading, whichever is greater (Accuracy is evaluated with a calibrated system at ambient temperature.)
Turbidity Calibration	Automatic Up to three points using 0 FNU, 20 FNU, 200 FNU, or custom
DO Pressure Compensation	Automatic; 450 to 850 mmHg
Temperature Compensation	Automatic; -5 to 50 °C; 23 to 122 °F; 268.15 to 323.15 K
Logging Memory	Interval logging 50000 records Log-on-demand (all parameters) 20000 records
Logging Interval	1 second to 3 hours
USBC (Host) Functions	Mass-storage host
USBC (Device) Functions	Mass-storage device
Protection Rating	IP67
Environment	0 to 50 °C (32 to 122 °F); RH 100 %
Battery Type	4 x 1.5V AA alkaline batteries 1 X internal, Li-ion rechargeable battery
Battery Life	≈ 126 hours 90 hours using alkaline AA batteries 36 hours using Li-ion battery (Estimated time given without backlight and Bluetooth®.)
Dimensions	185 X 93 X 35.2 mm (7.3 X 3.6 X 1.4")
Weight	435 g (13.3 oz) (with batteries)

Portable Multiparameter pH/EC/Turbidity/opdo^® Meter with Bluetooth^® (HI98594) supplied with rugged carrying case
Multisensor probe (HI7698594) (1 pc.)
pH/ORP Sensor that is pre-installed on the probe (HI7698194-1) (1 pc.)
EC/Turbidity sensor that is pre-installed on the probe (HI7698594-4) (1 pc.)
Optical DO Sensor that is pre-installed on the probe (HI7698594-5) (1 pc.)
DO Smart Cap with o-ring (HI764113-1) (1 pc.)
Long Protective Probe Shield (HI7698296) (1 pc.)
Long Calibration Beaker (HI7698293) (1 pc.)
Quick Calibration Standard Solution 230 mL (1 pc.)
Zero Oxygen Solutions Set 120 mL (1 pc.)
0 FNU Calibration Solution 230 mL (HI9829-16) (1 pc.)
20 FNU Calibration Solution 230 mL (HI9829-17) (1 pc.)
200 FNU Calibration Solution 230 mL (HI9829-18) (1 pc.)
Probe Maintenance Kit (accessories box included) (1 pc.)
Protective Rubber Boot fitted on the meter (HI710036) (1 pc.)
USB Cable (HI920016) (1 pc.)
1.5V AA alkaline batteries (4 pcs.)
Quick Reference Guide (1 pc.)
Meter, Smart Cap, and Probe Quality Certificates

2 year warranty for meter (HI98594)
6 month warranty for probe (HI7698594)
6 month warranty for sensors (HI7698194-1, HI7698594-4, HI7698594-5)

Our Portable Multiparameter pH/EC/Turbidity/opdo^® Meter with Bluetooth^®(HI98594) is warranted for two years (sensors and probe for six months) against defects in workmanship and materials when used for its intended purpose and maintained according to instructions. This warranty is limited to repair or replacement free of charge. Damage due to accidents, misuse, tampering or lack of prescribed maintenance is not covered.
