HI98169 is a rugged, waterproof, portable pH meter that measures pH and temperature of must in winemaking. This meter is supplied with a specialized pH probe that features an open junction with Clogging Prevention System (CPS™) technology.
Ensure that your data can be trusted with GLP data. Accessible by a fixed dedicated key, this data includes date, time, pH calibration buffers, offset, and slope.
The HI98169's log-on-demand feature allows users to store up to 200 samples that can later be transferred to a PC with the HI920015 USB cable and HI92000 software.
Designed to withstand the knocks, drops, and spills of real life, the IP67 body ensures top performance in any environment. Your meter is better protected against dust and water intrusion from any direction. The Quick Connect DIN provides a water-tight seal without twisting.
Your measurements require detailed attention; so should your electrode. The HI98169 Professional Portable Wine pH Meter features a replaceable probe that has been carefully designed to measure the pH in wine.

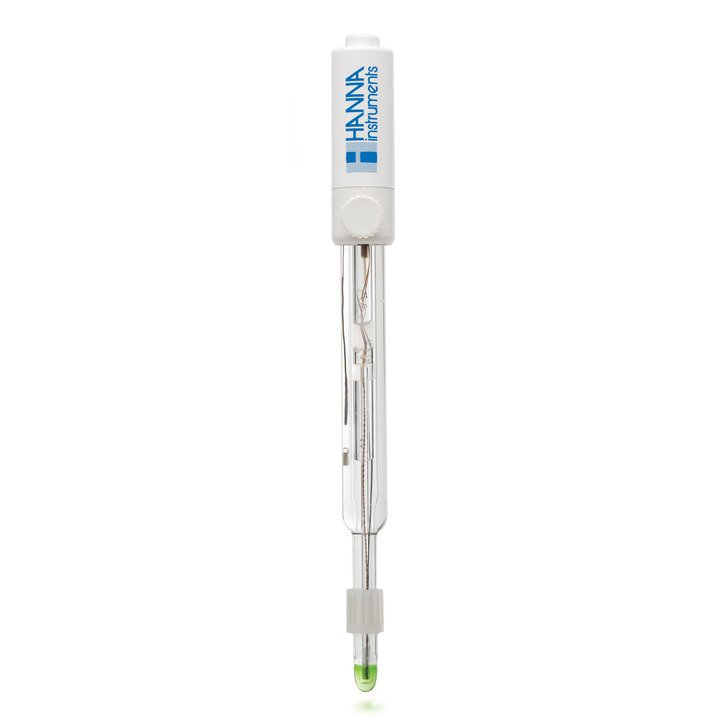

The HI98169 portable pH meter for wine uses the glass body FC10483 pH electrode with Hanna's unique Clogging Prevention System (CPS™). This electrode provides a fast stable response and resists clogging. The electrolyte solution in the electrode is refillable.
The FC10483's CPS™ (Clogging Prevention System) is an innovation in electrode technology. Conventional pH electrodes use ceramic junctions that clog quickly when used in wine. When the junction is clogged, the electrode does not function. CPS™ technology utilizes the porousness of ground glass coupled with a PE sleeve to prevent clogging of the junction.
We believe that buying a meter should be simple. Your Professional Portable Wine pH Meter is equipped with everything you need for successful testing right out of the box.
Your Wine pH Meter comes with cleaning solution that has been engineered to keep your electrode free from contaminants. This concentrated combination of detergents cleans your tester quickly and effectively so that your tester stays in optimum condition.
When performing a pH calibration it is important that the correct buffers are used. We include some start buffers to get you going.

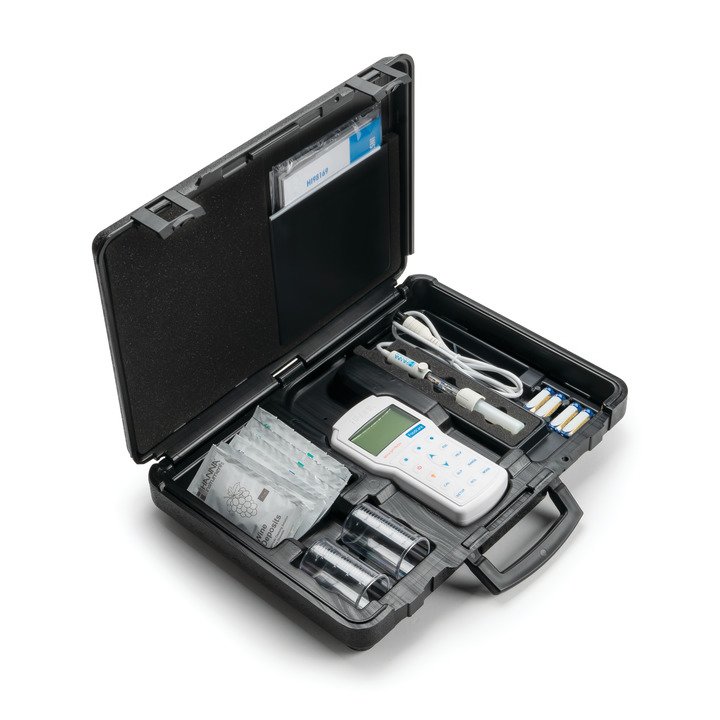

Your meter, probe, and accessories are all neatly packaged in a rugged carrying case to ensure that you have everything you need for on-the-go field testing.
Specification | Detail |
---|---|
sku | HI98169 |
pH Range | -2.0 to 20.0 pH -2.00 to 20.00 pH -2.000 to 20.000 pH |
pH Resolution | 0.1 pH 0.01 pH 0.001 pH |
pH Accuracy @ 25°C / 77°F | ±0.1 pH ±0.01 pH ±0.002 pH |
pH Calibration | Up to five-point calibration, seven standard buffers available (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and five custom buffers |
mV Range | ±2000 mV |
mV Resolution | 0.1 mV |
mV Accuracy | ±0.2 mV |
Temperature Range | -20.0 to 120.0 °C (-4.0 to 248.0°F) |
Temperature Resolution | 0.1°C (0.1°F) |
Temperature Accuracy @ 25°C / 77°F | ±0.4°C (±0.8°F) (excluding probe error) |
Temperature Compensation | Automatic or manual from -20.0 to 120.0°C (-4.0 to 248.0°F) |
Power Supply | 1.5V AA batteries (4) / approximately 200 hours of continuous use without backlight (50 hours with backlight) |
Environment | 0 to 50°C (32 to 122°F) RH 100% IP67 |
Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4) |
Weight | 400 g (14.2 oz.) |
Ordering Information | HI98169 is supplied with FC10483 pH electrode, pH 3.00 buffer solution sachets (2), pH 7.01 buffer solution sachets (2), HI700635 Cleaning solution for wine deposits sachet, HI700636 cleaning solution for wine stains sachet, 100 mL plastic beaker (2), HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, guidebook for winemakers, and quality certificate in a HI720169 hard carrying case with custom insert. |
Warranty | 2 years |
Recommended Probe | FC10483 preamplified pH and temperature probe with flat tip, DIN connector and 1 m (3.3') cable |
