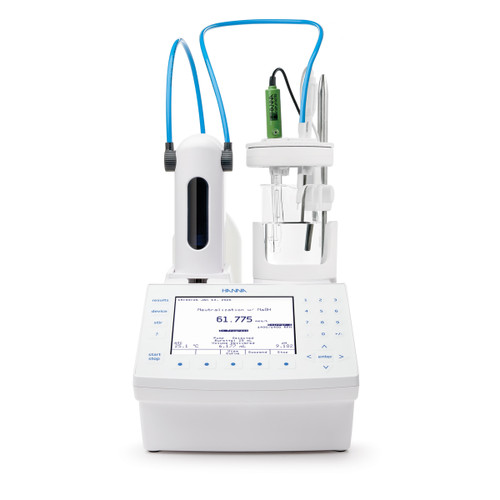

HI930

Standard Automatic Potentiometric Titrator

Request a quote

Our Standard Automatic Potentiometric Titrator takes up minimal bench space and fits seamlessly into any lab environment. Easily perform up to 15 titration methods (standard or user-defined) and store up to 50 titration and pH/mV reports.

Ideal for quality control labs and manufacturing plants with several shift changes, this Standard Titration System is user-friendly with its workflow and simple navigation menus.

Why is our Standard Automatic Potentiometric Titrator the right choice for your lab?

Highly precise and accurate. Attain repeatable results at just the push of a button and ensure that every member of your team can replicate tests the same way
each time
Extremely strong and durable. Designed to handle critical titrations in many industries and can withstand the harsh chemicals that are frequently used during the testing process
Consistently reliable and comprehensive. Take quality assurance to the next level and meet standards with detailed data records that can be transferred via USB

At Hanna Instruments, we understand that purchasing an automatic titration system is a big decision and there are a multitude of considerations to make beforehand. Our team of experts are here to answer any questions that you may have and can help you determine the best solution for your application and testing requirements.

Which industries use Automatic Titrators?

Food

Beverage Manufacturing

Laboratory

Education and Research

Industrial

Petrochemical

Municipalities

Save valuable lab space

A simple set up for easy integration

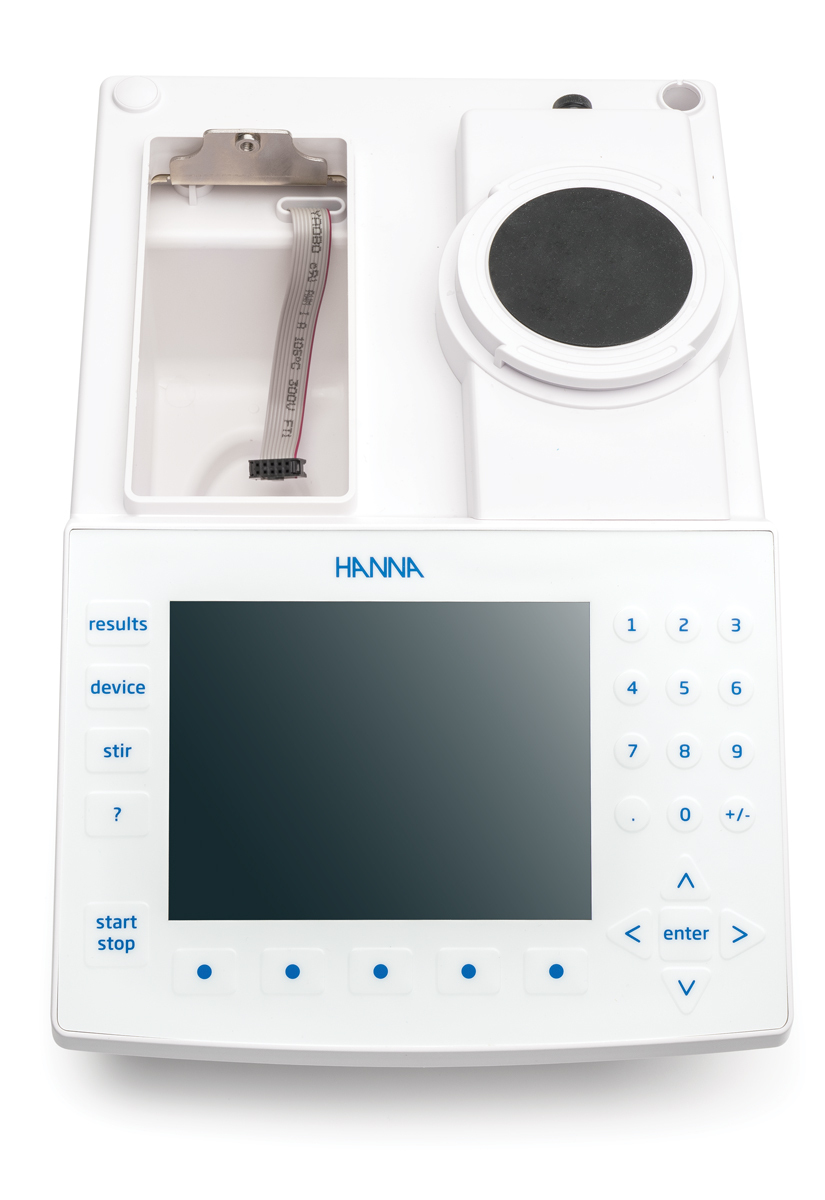

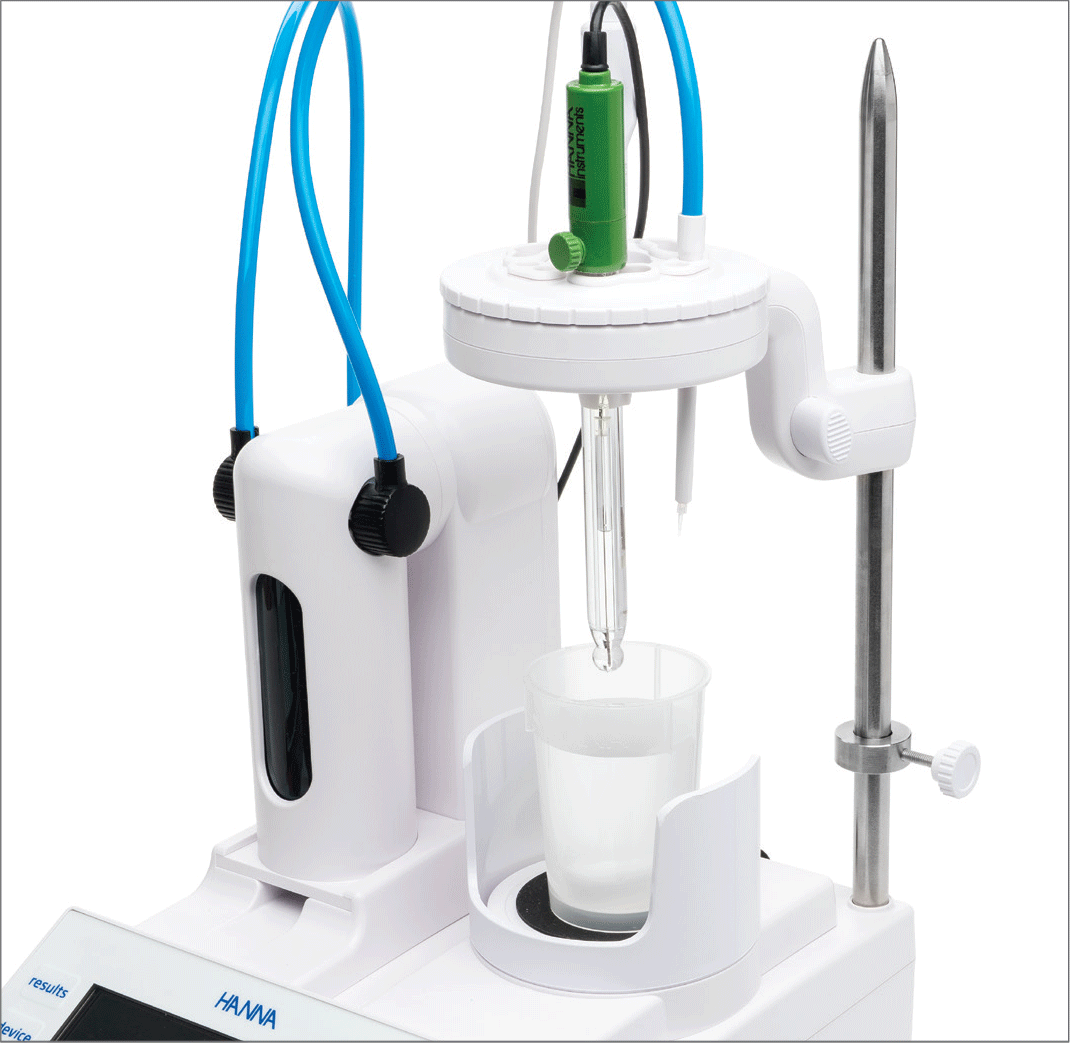

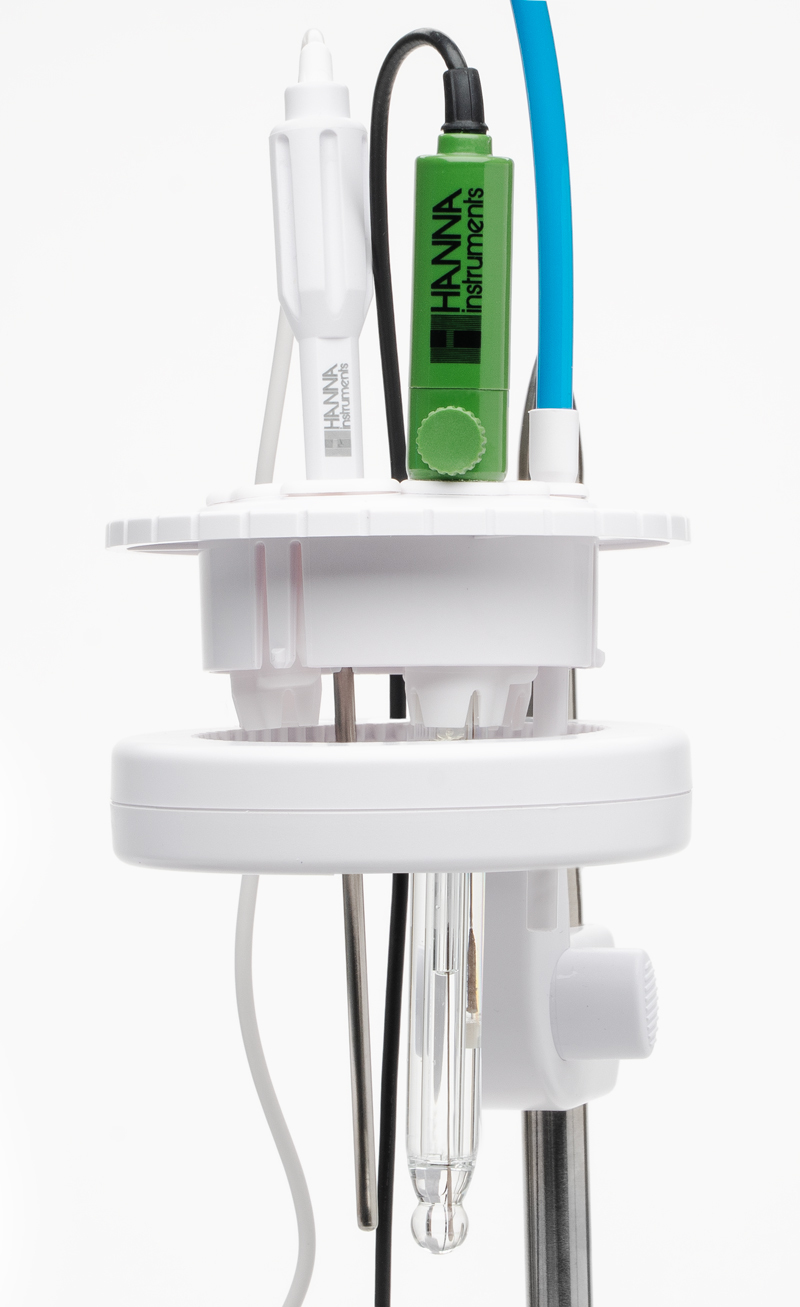

We thoughtfully designed this automatic titration system to have a small footprint. The flexible electrode holder and magnetic stirrer are directly built into the top of the titrator unit, instead of on the side. This ensures that this titrator requires minimal space in a laboratory setting, so that you can improve your workflow and increase productivity.

Get more done

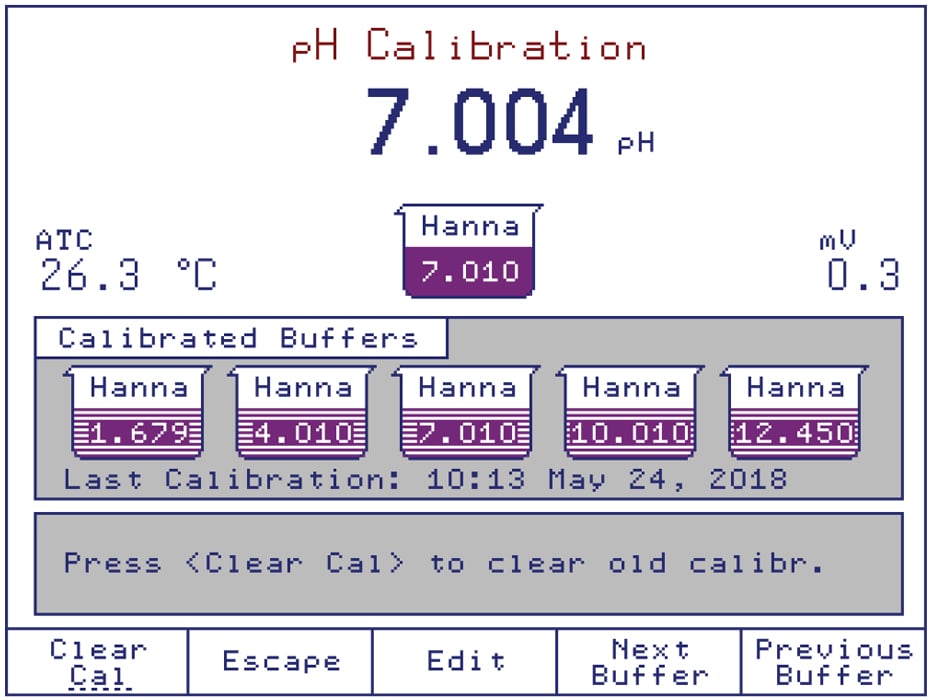

Doubles as a Research Grade pH/mV Meter

With our versatile Automatic Titrator, multiple analyses can be done with one sample. This unit functions not only as a titrator, but as a pH meter and mV/ORP meter as well.

We offer a variety of compatible BNC pH Electrodes to choose from. Find the one that suits your application and quickly connect for stable measurements.

Stay compliant with traceable data right at your fingertips

Prep for audits & meet requirements

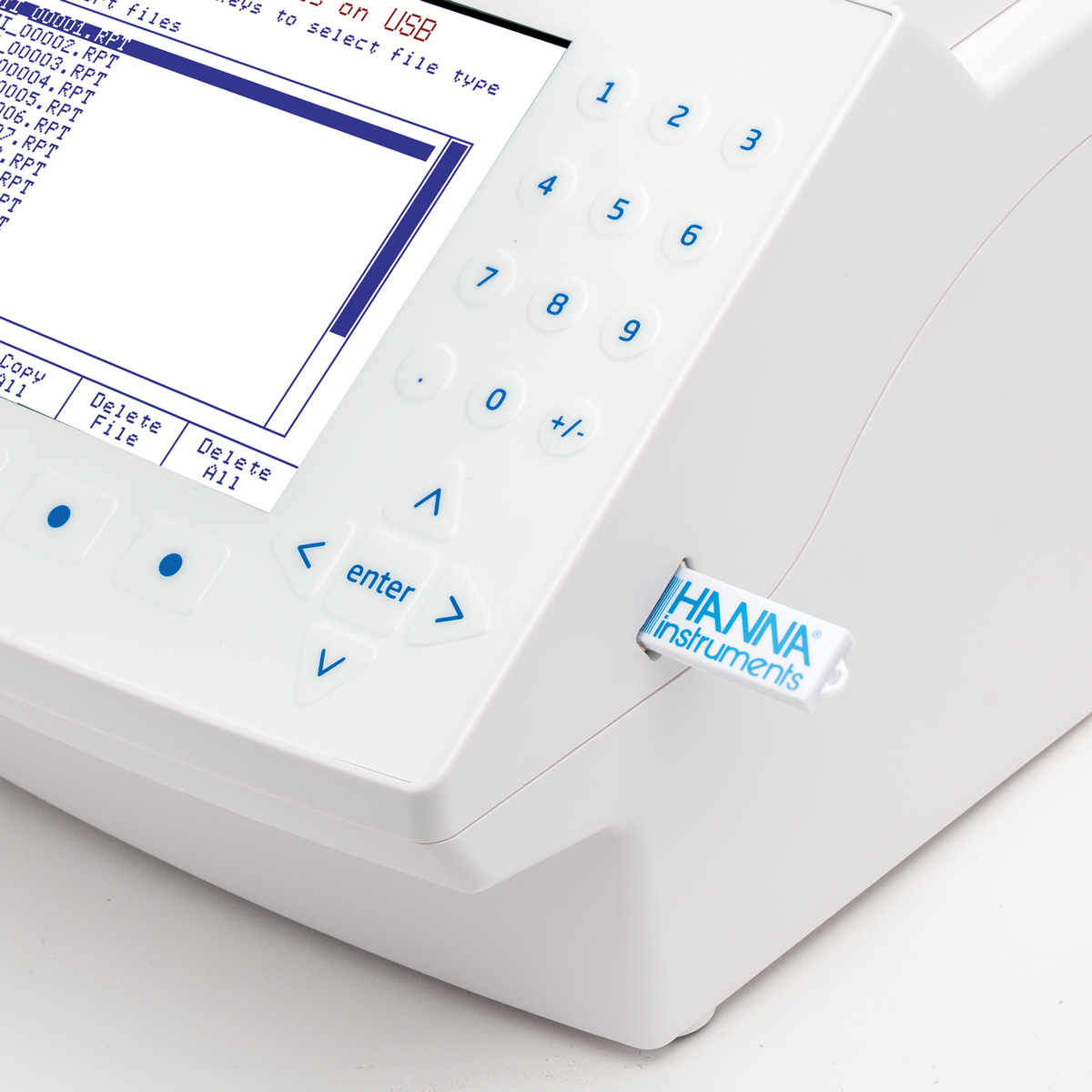

Store up to 50 titration and pH/mV customizable analysis reports and simply transfer data via a USB. Information such as date, time, method settings, results, and calibration data are recorded with each sample.

In addition, a real-time titration curve can be displayed during each titration which is useful when new methods are tested or when a procedure requires optimization.

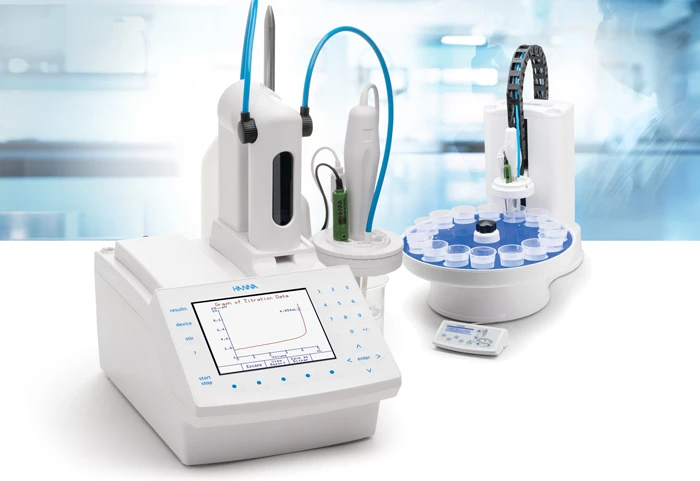

Discover titration resources

Take a look around! Find helpful titration content for your lab. Use our guides and SOPs as your testing reference.

SHOW ME TITRATION CONTENT

*All titrators are compatible with our Silver Billet (HI5148B)
**Adapter required for photometric connection on our Automatic Titrator (HI932)
***With the network box you can transfer to a PC and print directly; network box sold separately.

https://cdn11.bigcommerce.com/s-l8qlnhq2eh/images/stencil/500x500/products/5161/11899/HI9814_F__07831.1746708569.jpg

HI9814 GroLine Waterproof Portable pH/EC/TDS Meter 299.99

Resources

What's included

Specifications

Product Manual

Standard Automatic Potentiometric Titrator (HI930)

Pump assembly

Burette assembly kit includes burette with 25 mL syringe, aspiration tube with fitting and protection tube, dispensing tube with dispensing tip, protection tube, and tube guide, tube locks, tool for burette cap removal, and light spectrum protection

Plastic beaker, 100 mL (3 pcs.)

Beaker support

Electrodes holder and support rod with positioning collar and screw

Magnetic stirrer (1 pc.)

Stir bar (2 pcs.)

Pump and burette locking screws with plastic head

Temperature sensor (1 pc.)

Shorting cap (1 pc.)

O-ring set (5×10.5 mm + 5×3 mm)

Power adapter (1 pc.)

USB memory stick (1 pc.)

Instrument quality certificate (1 pc.)

Instruction manual (1 pc.)

Specification	Detail
Analysis Type	Standard titration (Standardization, Fixed pH/mV, Equivalence point pH/mV)
Endpoint Mode	Fixed mV Fixed pH mV equivalence point (1st or 2nd derivative) pH equivalence point (1st or 2nd derivative)
Burette Size	5 mL, 10 mL, 25 mL, 50 mL
Burette Resolution	0.001 mL
Burette Flow rate	0.1/0.3 mL to 2 × burette volume per minute
Burette Accuracy	±0.005 mL (5 mL burette) ±0.010 mL (10 mL burette) ±0.025 mL (25 mL burette) ±0.050 mL (50 mL burette)
Stirrer Type	Integrated magnetic
Stirrer Range	200 to 1400 RPM
Stirrer Resolution	100 RPM
mV Range	−2000.0 to 2000.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.1 mV
mV Calibration	Single point, offset
pH Range	−2.000 to 20.000 pH
pH Resolution	0.1 / 0.01 / 0.001 pH
pH Accuracy	±0.001 pH
pH Calibration	Up to 5 points with standard or custom buffers
Temperature Range	−5.0 to 105 °C 23.0 to 221.0 °F 268.2 to 378.2 K
Temperature Resolution	0.1
Temperature Accuracy	±0.1 °C / ±0.2 °F / ±0.1 K
Data Storage Methods	Up to 15 titration methods (standard and user-defined)
Data Storage Reports	Up to 50 titrations and pH/mV reports
Connections Measurement	1 × BNC socket (pH, ORP electrodes) 1 × 4 mm banana socket (reference electrode) 1 × RCA socket (temperature sensor)
Connections Peripheral	1 × USB standard A (USB flash drive)
Electrode Holder	4 × multi-purpose slots (titrant tubes) 4 × 12-mm electrode slots (3 integrated, 1 with included adapter) 1 × temperature sensor slot
Display	5.7 in. graphical color display with backlight
Power Supply	100 - 240 VAC, 50 / 60 Hz
Power Draw	0.5 amps
Enclosure Material	ABS, PC-ABS, stainless steel
Keypad	Polyester
Dimensions	315 x 205 x 375 mm (12.4 x 8.1 x 14.8 in.)
Weight	Approximately 3.6 kg (7.9 lbs.) with burette
Operating Environment	10 to 40 °C (50 to 104 °F), up to 95 % RH
Storage Environment	−20 to 70 °C (−4 to 158 °F), up to 95 % RH
