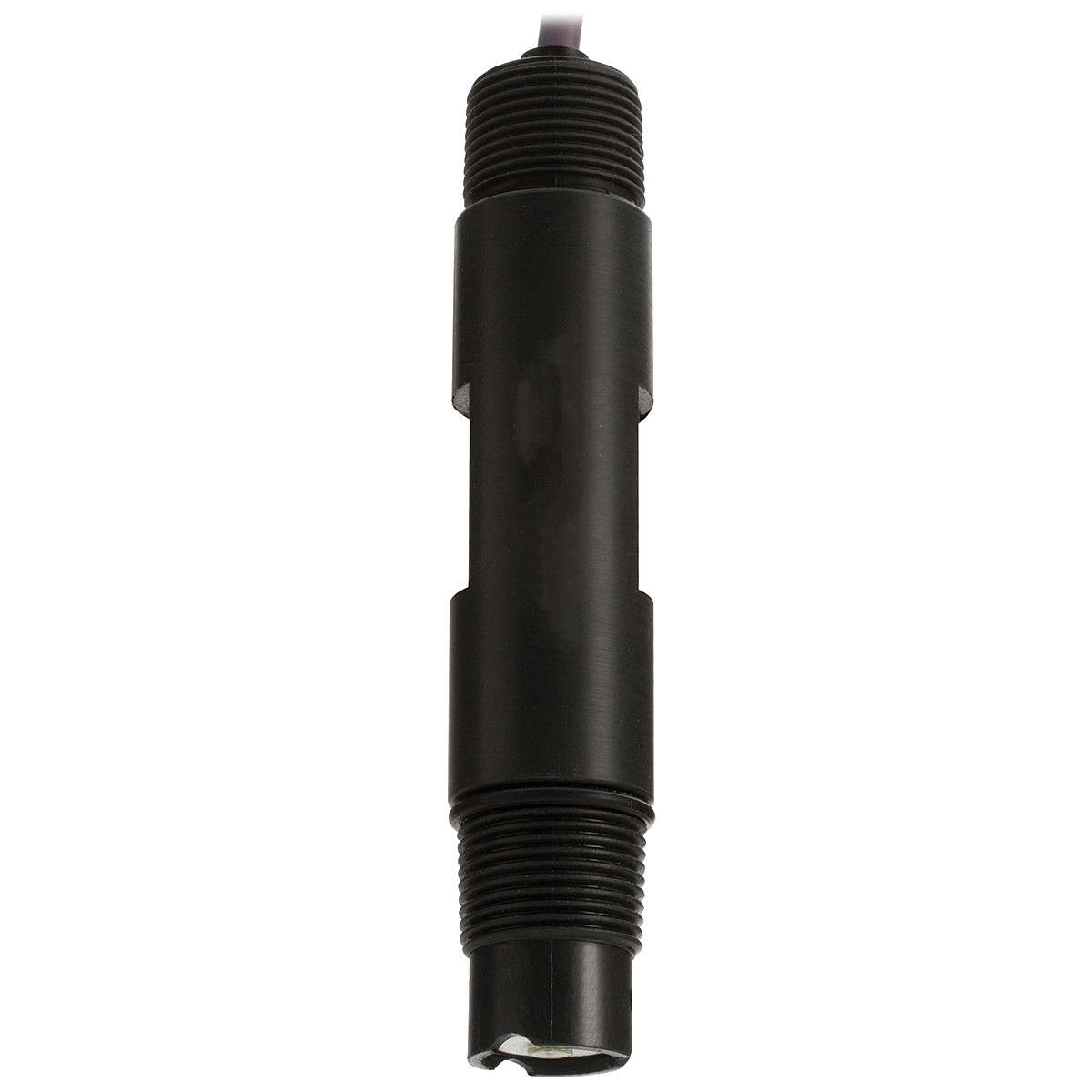

AmpHel® Flat-tip pH Electrode - Acid Samples, 5m Cable

HI6100205

AmpHel® Flat-tip pH Electrode - Acid Samples, 5m Cable

$269.00

This amplified pH electrode is designed for industrial acid samples with fluoride ions with features such as a PTFE junction, fluoride-resistant glass, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.

Flat-tip pH electrode.
HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life.
Built for everyday, demanding use in industrial applications.

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

Flat tipped pH electrode

Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

PVDF body

PVDF offers characterized by high thermal stability and excellent chemical resistance.

BNC connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

Hydrofluoric resistant glass formulation

HF resistant glass is designed for use in aggressive applications that have fluoride ions for extended life.

Double junction technology with gel polymer filling

Ensure long electrode life and reliability in harsh environments.

Don't Forget!

Add your reagents or accessories now to save time and money later!

HI70300L pH Electrode Storage Solution (500 mL) $18.00

Resources

Specifications

Specification Name	Detail
SKU	HI6100205
Range	pH: 0-10
Tip Shape	Flat
Body	PVDF
Junction	Double, PTFE
Glass Type	HF (-5 to 60°C)
Electrolyte	Polymer
Matching Pin	Yes
Amplifier	No
Temperature Sensor	No
Max Pressure	6 bar (87 psi)
Connector	BNC
Cable	5m
Warranty	6 months
