A versatile meter by design
Be proactive with added flexibility
Make edge your own and adapt this meter to any environment. With multiple configuration options you can:
- Utilize edge as a portable meter and move around from location to location within your lab or facility
- Create a zero footprint by mounting edge on a wall for easy viewing, while also reserving valuable benchtop space
- Go back to the basics and use edge as a benchtop meter unit
Stands out in a busy lab
Clearly see and track digital results
Ensure your testing success and equip your team with edge. Packed with the following features to help you:
- Stay informed. Conveniently monitor pH electrode behavior with Cal CheckTM. Available for pH measurements only, receive alerts when there are issues such as a dirty electrode or contaminated buffer solution
- Be certain. Always know the condition of your probe and detect accurate measurements on the spot with an easy-to-read, large LCD screen
- Maintain compliance. Gain full traceability into all necessary GLP information and automatically store up to 1,000 logged data records
- Recommended use: Suited for laboratory general purposes or beer testing
- Description: Refillable, combination, digital pH electrode
- pH range: 0 to 14 pH
- Temperature range: -5 to 100°C (23 to 212°F) - HT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Spheric (dia: 9.5 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Ceramic, single / 15-20 µL/h
- Electrolyte: KCl 3.5M
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited testing for wine and must
- Description: Refillable, digital pH electrode with CPSTM (clogging
prevention system) - pH range: 0 to 12 pH
- Temperature range: -5 to 60°C (23 to 140°F) - LT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Dome (dia: 8 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: CPSTM
- Electrolyte: KCl 3.5M
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for dairy products such as milk, cheese, and yogurt
- Description: Digital pH electrode for dairy products
- pH range: 0 to 12 pH
- Temperature range: 0 to 60°C (32 to 140°F) - LT
- Temperature sensor: Yes
- Body material: PVDF (Polyvinylidene fluoride, a food-grade plastic)
- Tip/shape: Conic (6 x 10 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Open
- Electrolyte: Viscolene
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Laboratory general purpose
- Description: Digital EC/TDS electrode for edge Multiparameter Meters
- EC/TDS range: 0.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 µS/cm,
3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (actual EC)
*with temperature compensation function disabled - Temperature range: -5 to 100°C (23 to 212°F)
- Temperature sensor: Yes
- Body material: PEI
- Body length: 120 mm
- Tip/shape: 4-ring probe
- Amplifier: No
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector

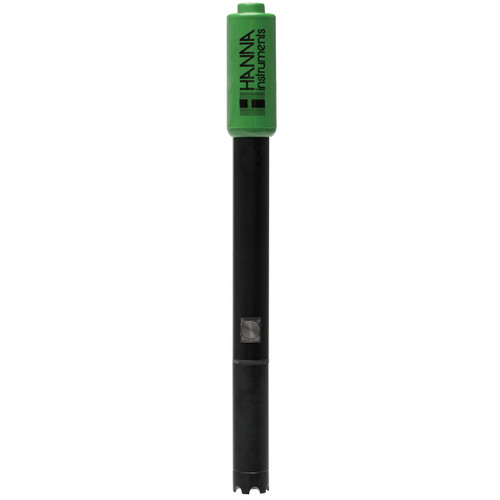

- Recommended use: Laboratory general purpose
- Description: Digital DO electrode for edge Multiparameter Meters
- DO range: 0 to 300% oxygen saturation
- Temperature range: 0 to 50˚C (32 to 122˚F)
- Temperature sensor: Yes
- Body material: PEI
- Body length: 120 mm
- Tip/shape: Polarographic membrane
- Reference: Ag/AgCl, glass encapsulated platinum
- Amplifier: No
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for laboratory general purposes or beer testing
- Description: Refillable, combination, digital pH electrode with Sensor CheckTM
- pH range: 0 to 14 pH
- Temperature range: -5 to 100°C (23 to 212°F) - HT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Spheric (dia: 9.5 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Ceramic, single / 15-20 µL/h
- Electrolyte: KCl 3.5M
- Max pressure: 0.1 bar
- Matching pin: Yes
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Laboratory general purpose
- Description: Digital EC/TDS electrode
- EC/TDS range: 0.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 µS/cm,
3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (actual EC)
*with temperature function disabled - Temperature range: -5 to 100°C (23 to 212°F)
- Temperature sensor: Yes
- Tip/shape: Four-ring
- Body material: PEI
- Body length: 120 mm
- Amplifier: No
- Cable length: 1 m (3.3')
- Recommended use: Suited for semi-solid products, emulsions, low conductivity solutions, fats and creams, high purity water, potable water, and soil samples
- Description: Refillable, combination, digital pH electrode with conical tip
- pH range: 0 to 12 pH
- Temperature range: -5 to 70°C (23 to 158°F) - LT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Conic (12 x 12 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Ceramic, triple / 40-50 µL/h
- Electrolyte: KCl 3.5M
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for field applications
- Description: Combination, digital pH electrode
- pH range: 0 to 12 pH
- Temperature range: -5 to 70°C (23 to 158°F) - LT
- Temperature sensor: Yes
- Body material: PEI
- Tip/shape: Spheric (dia: 7.5 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Ceramic, single / 15-20 µL/h
- Electrolyte: Gel
- Max pressure: 2 bar
- Matching pin: Yes
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for hydrocarbons, solvents, strong acids and bases, high conductivity samples, paints, sea water, and tris buffer
- Description: Refillable, combination, digital pH electrode with double junction
- pH range: 0 to 13 pH
- Temperature range: -5 to 100°C (23 to 212°F) - HT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Spheric (dia: 9.5 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Ceramic, triple / 40-50 µL/h
- Electrolyte: KCl 3.5M
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for dairy products such as yogurt, milk, and cheese
- Description: Digital pH electrode for dairy products
- pH range: 0 to 12 pH
- Temperature range: 0 to 60°C (32 to 140°F) - LT
- Temperature sensor: Yes
- Body material: Glass
- Tip/shape: Conic (6 x 10 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Open
- Electrolyte: Viscolene
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
- Recommended use: Suited for meat products and semi-frozen food samples
- Description: Digital pH electrode for meat products
- pH range: 0 to 12 pH
- Temperature range: 0 to 60°C (32 to 140°F) - LT
- Temperature sensor: Yes
- Body material: PVDF (Polyvinylidene fluoride, a food-grade plastic)
- Tip/shape: Conic (6 x 10 mm)
- Reference: Double, Ag/AgCl
- Junction/flow rate: Open
- Electrolyte: Viscolene
- Max pressure: 0.1 bar
- Matching pin: No
- Amplifier: Yes
- Cable length: 1 m (3.3')
- Connection: 3.5 mm connector
