HI762A

Air and Gas Thermistor Probe with Handle - HI762A

$119.99

The HI762A is an air and gas thermistor probe with a handle designed for use with a thermistor thermometer. A cable extends 1 m (3.3') from the handle to the meter connection. The vent holes at the tip of the probe allow users to obtain highly accurate temperature readings of air and gases.

Measures up to 150°C (302°F)
6 second response time
AISI 316 stainless steel

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

The Air and Gas Thermistor Probe with Handle - HI762A is designed to measure the temperature of air and gas samples. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI762A construction with vent holes located at the tip of the probe offers a 6-second response for a temperature reading. With a strong, corrosion-resistant, AISI 316 stainless steel construction, this probe is able to measure samples up to 150°C (302°F).

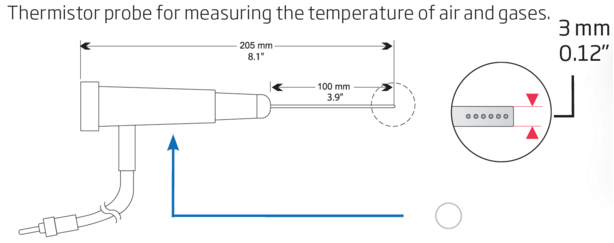

Dimennsions HI762A

Keep extra testing supplies on-hand

HI762000C Calibration Check Key at 0°C (HI762 Probes) $32.99

HI762032F Calibration Check Key at 32°F (HI762 Probes) $32.99

Resources

Specifications

Specification Name	Detail
SKU	HI762A
Reference	NTC thermistor
Accuracy (@25˚C/77˚F)	±0.2°C (±0.4°F)
Recommended Operating Temperature	-50 to 150°C (-58 to 302°F)
Response Time (90% of final value)	5 seconds
Body Length	L 100 mm x dia 3 mm (3.9" x 0.12")
Temperature Sensor	yes
Body Material	AISI 316 stainless steel
Cable	PVC/straight; 1 m (3.3')
Recommended Use	air, gases
Connection	RCA
