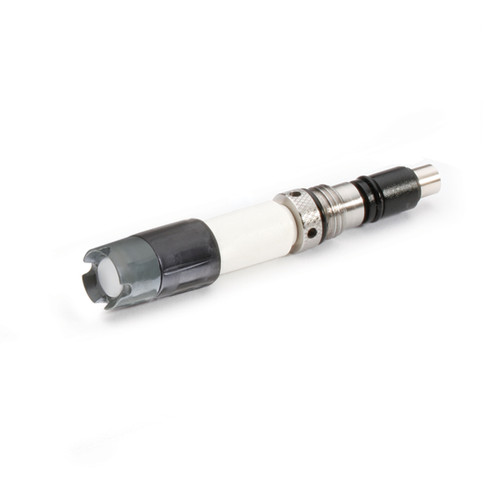

HI7698194-2

Spare Galvanic DO Sensor for HI769819X Probe

$185.00

Availability: In stock

FREE Shipping*

X
*Applies to 48 contiguous United States. Standard UPS Ground shipping. No promo code needed. Exclusions may apply.
The HI7698194-2 is a replaceable galvanic dissolved oxygen membrane sensor for use with Hanna’s family of mulitparameter portable meters and probes. The sensor body is constructed of durable ABS material and contains an easily replaceable membrane cap design. The membranes are constructed of HDPE and each cap screws onto the sensor with the twist of a finger. The HI7698194-2 sensor contains a silver cathode and zinc anode. The sensor module is color coded for easy installation and integration with the probe.
  • Easily Replaceable Membrane Caps
  • No Warm-Up Time
  • Color Coded Sensor

Details

Easily Replaceable Membrane Caps

The pretensioned HDPE (High Density Polyethylene) membranes use a screw-on cap design for simple electrolyte filling and easy placement on the sensor.

No Warm-Up Time

The sensor’s galvanic design requires no conditioning time for the electrodes, allowing you to take measurements right away.

Color Coded Sensor

Sensors are color coded to match sensor ports on the probe for quick, field-replaceable, screw-type, connection and identification.

Specifications

Warranty

sensor

Sensor HI7698194-2
Description DO sensor
Measurement Type DO (% saturation and concentration)
Measurement Range 0.0 to 500.0 %; 0.00 to 50.00 mg/L
Temperature Range -5 to 55 °C
Color Code white
Tip cat/an: Ag/Zn
Junction membrane HDPE
Body white top ABS
Maintenance HI7042S (DO electrolyte)
Dimensions 99 x 17 mm
Depth 20 m (65’)
