HI7698194-3

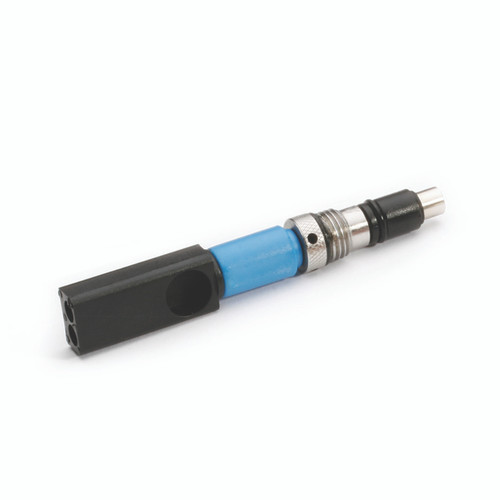

Spare EC Sensor for HI769819X Probe

$185.00

Availability: In stock

FREE Shipping*

X
*Applies to 48 contiguous United States. Standard UPS Ground shipping. No promo code needed. Exclusions may apply.
The HI7698194-3 is a replaceable 4-ring electrode conductivity sensor for use with Hanna’s family of multiparameter portable meters and probes. The sensor body is constructed of durable ABS material and contains AISI 316 stainless steel electrodes that are not subject to polarization or surface coating effects. Each module is color coded for easy installation and integration with the probe.
  • ABS Sensor Body
  • 4-Ring Stainless Steel Electrodes
  • Color Coded Sensor

Details

ABS Sensor Body

The ABS (Acrylonitrile Butadiene Styrene) sensor body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the electrodes minimizes breakage due to accidental bumping or dropping. The ABS plastic is a high-quality plastic that is chemically resistant to many harsh chemicals.

4-Ring Stainless Steel Electrodes

A 4-ring electrode design allow for reduced polarization and surface coating effects over an extended linear range of measurement. Stainless steel electrode construction makes for a durable sensor in field conditions.

Color Coded Sensor

Sensors are color coded to match sensor ports on the probe for quick, field-replaceable, screw-type, connection and identification.

Specifications

Warranty

sensor

Sensor HI7698194-3
Description EC sensor
Measurement Type EC, TDS, Salinity
Measurement Range 0.0 to 200.0 mS/cm; 0.0 to 400 mS/cm (absolute)
Temperature Range -5 to 55 °C
Color Code blue
Tip stainless steel electrodes
Body ABS/epoxy
Maintenance none
Dimensions 111 x 17 mm
Depth 20 m (65’)
