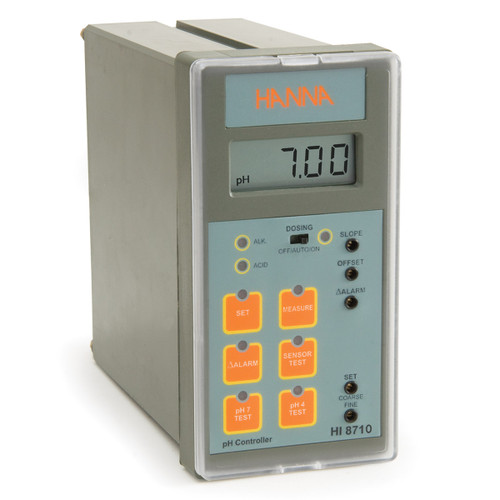

pH Analog Controller with Self-Diagnostic Test

HI8710

pH Analog Controller with Self-Diagnostic Test

$699.99

HI8710 is a panel mounted pH controller with self-diagnostic test capabilities. Users can set: the setpoint for acid or alkaline dosage, the tolerance of the setpoint before an alarm is activated, the dosage mode: automatic, continuous on or OFF and the over dosage control by setting the overtime dosage knob.

Hanna’s exclusive Fail Safe Fail Safe Alarm System protects against problems caused by power supply failure or signal interruption, which are typical risks in industrial environments.
Temperature compensation ensures fast, accurately compensated readings even during sudden temperature fluctuations.
Backlit, LCD display for easy viewing.

Learn More

Thank you for your interest in our products. A representative will contact you within the next business day.

Fail Safe Alarm System

Hanna’s exclusive Fail Safe Alarm System protects against problems caused by power supply failure or signal interruption, which are typical risks in industrial environments. An alarm condition is indicated by a red LED, located directly on the front panel of the controller.

Overtime Dosage

“Overtime dosage” function with selection knob and jumper for disable on the rear panel. If the dosing relay remains continuously activated for more than selected dosing time the alarm relay is activated, the alarm LED is blinking and the dosing relay is deactivated.

ORP Dosing Consent Device

When used in conjunction with the HI8720 ORP controller, the ORP Dosing Consent Device function will ensure that the ORP dosage will start only when the pH level is correct.

Automatic Temperature Compensation

A 2-wire Pt100 can be connected to provide automatic temperature compensation of the pH measurements.

Matching Pin Connection

Supports potential matching pin connection to avoid typical problems caused by grounding loop current, such as progressive damage of the electrode, fluctuating measurements, and poor process regulation.

Robust Design

A removable, transparent splash-proof cover protects the front panel.

Resources

Specifications

Specification Name	Detail
sku	HI8710
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy (@20°C/68°F)	±0.02 pH (0 to 100 °C)/ ±0.05 pH (-20 to 0 °C) (electrode); ±0.5% (transmitter)
Temperature Compensation	Fixed or automatic with Pt100 from -20 to 100 °C (-4 to 212 °F)
Calibration	Offset: ±2 pH with OFFSET trimmer; Slope: 80 to 110% with SLOPE trimmer
Recorder Output	0-20 mA or 4-20 mA (isolated)
Analog Input	4 to 20 mA
Power Output	±5 Vcc; 150 mA max load for amplified electrodes
Setpoint Relay	1, isolated, 2 A, Max 240 V, resistive load, 1000000 strokes (not fuse protected)
Setpoint Range	0.2 to 3.00 pH
Backlight	Continuous ON
Dosing Control	OFF/AUTO/ON with selection switch
Over Dosing Control	Adjustable, from 5 min to 60 min with knob or Disable by wire strap - on rear panel
Power Supply	115 or 230 Vac; 60/50 Hz
Alarm Relay	1, isolated, 2 A, Max 240 V, resistive load, 1000000 strokes (not fuse protected)
Alarm Range	0.2 to 3.00 pH
Environment	$-10 to 50°C (14 to 122°F); RH max 95% non-condensing
Enclosure/ Case Material	Black anodized aluminium body; front and back with ABS; transparent splash-proof front cover
Dimensions	141 x 69 mm (5.6 x 2.7'')
Weight	kg (2.2 lb.)

Product Manuals

HI8711 Manual Download
